BZT52C36S

Single Zener Diodes Overview

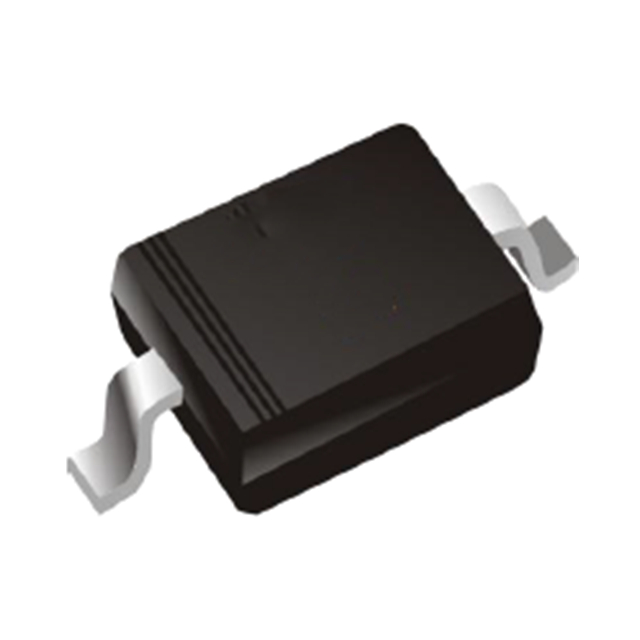

The BZT52C36S is a unidirectional surface-mount Zener diode from the NextGen Components BZT52C series, housed in an SOD-323 plastic-encapsulated case. It features a nominal Zener voltage of 36V with a tolerance range of 34V to 38V. The device has a peak pulse power dissipation rating of 200mW and operates within a junction temperature range of -55°C to +150°C. Electrical characteristics include a maximum dynamic impedance of 90Ω at a test current of 2mA and a reverse leakage current of 0.1μA at 27V.

Single Zener Diodes Feature Summary

• Planar die construction for general-purpose medium current applications
• Small plastic package suitable for automated surface-mounted design processes
• Compliant with RoHS III/REACH regulations and halogen-free

Single Zener Diodes Applications

• Surface mounted circuit protection
• Voltage reference circuits
• General purpose electronic assemblies

Single Zener Diodes Procurement Notes

Verify the specific part code BZT52C36SS00WS against the official specification sheet Q1103-BZT52C36SS00WS Revision A0. Confirm that the marking code matches 'WS' on the component body. Ensure compliance requirements such as RoHS III and REACH are documented in the manufacturer's test reports before final procurement.

Single Zener Diodes Selection Notes

Select this component for designs requiring a 36V Zener voltage in a compact SOD-323 footprint. The 200mW power rating supports standard signal-level clamping tasks. Verify that the operating environment stays within the specified -55°C to +150°C junction temperature limits to maintain electrical stability.

Single Zener Diodes Part Context

This component belongs to the BZT52C series of small-signal Zener diodes manufactured by NextGen Components. The series offers a wide reverse voltage range from 2.0V to 75V. The BZT52C36S specifically utilizes the SOD-323 case style, which is designed for efficient space utilization in modern printed circuit board layouts.

Single Zener Diodes Replacement Considerations

The datasheet lists MDD/BZT52C36S as a cross-reference part number. Verify mechanical dimensions and electrical tolerances match the original design requirements before substituting.
