C-2 34.0000KC-P

Crystals Overview

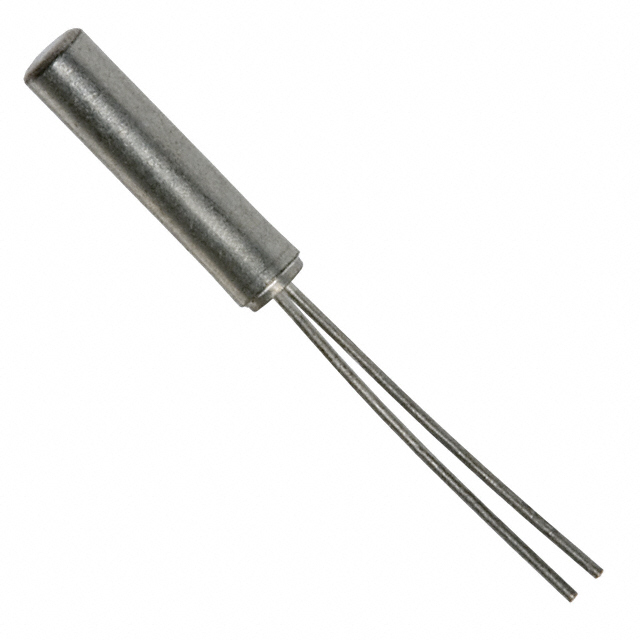

The EPSON C-2 34.0000KC-P is a cylindrical can, radial lead crystal oscillator operating at a fundamental frequency of 34.0000 kHz. It features a load capacitance of 11 pF and an equivalent series resistance (ESR) of 35 kOhms. The component provides a frequency tolerance of ±20 ppm. This through-hole device is designed for stable timing applications in electronic circuits.

Crystals Feature Summary

• Fundamental mode tuning fork crystal design
• Cylindrical can package with radial leads
• High stability timing performance

Crystals Applications

• Clock and timer circuits
• Real-time clock (RTC) systems
• Electronic timing control

Crystals Procurement Notes

Verify the specific ordering suffix to confirm compliance status, as variants may differ regarding RoHS and lead content. Ensure the ESR value matches the circuit requirements, as this model specifies 35 kOhms. Confirm the load capacitance of 11 pF aligns with the host oscillator circuit design before procurement.

Crystals Selection Notes

Select this component when a 34 kHz fundamental frequency is required with ±20 ppm accuracy. The 11 pF load capacitance must match the external circuit configuration. Consider the 35 kOhms ESR for drive level sensitivity. The cylindrical can package suits through-hole mounting processes.

Crystals Part Context

This part belongs to Epson's C-2 series of cylindrical can crystals. These components are engineered for high-frequency stability and reliability in consumer and industrial electronics. The series offers various frequencies and tolerances to meet diverse timing requirements.

Crystals Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with any alternative by matching frequency, load capacitance, ESR, and package dimensions.
