CA.69

Antennas RF Overview

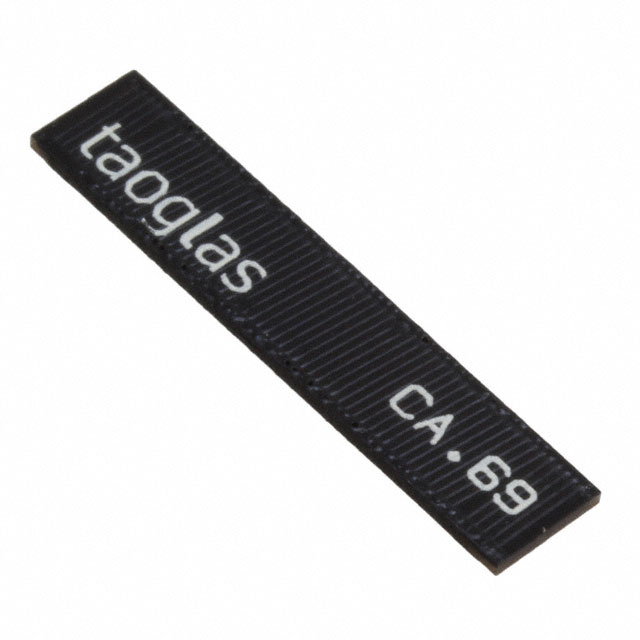

The CA.69 is a polymer substrate chip antenna manufactured by Taoglas Limited, designed for VHF band applications at 169 MHz. It features a linear polarization and surface mount solder termination. The component provides a gain of 7 dBi with a maximum voltage standing wave ratio (VSWR) of 2. Its physical dimensions are 25.2 mm in length, 5.1 mm in width, and 0.8 mm in height. The antenna operates within the UHF frequency group and supports standards including Bluetooth, WiFi, and Zigbee.

Antennas RF Feature Summary

• High-efficiency miniature design suitable for space-constrained devices
• Linear polarization for consistent signal transmission
• Surface mount solder termination for automated assembly

Antennas RF Applications

• VHF 169MHz band applications
• Bluetooth enabled devices
• WiFi connectivity modules
• Zigbee network nodes

Antennas RF Procurement Notes

Verify the specific ordering suffix to ensure the correct packaging format matches production requirements. Confirm that the RoHS3 compliance status aligns with environmental regulations for the target market. Check the moisture sensitivity level classification to determine storage and handling protocols during assembly. Ensure the ECCN classification meets export control requirements for the destination region.

Antennas RF Selection Notes

Select this component when a high-gain solution is required for VHF applications. The compact form factor allows integration into small enclosures. Verify impedance matching with the RF circuit to maintain optimal performance. Consider the operating temperature range and mechanical stability for the intended environment.

Antennas RF Part Context

This part belongs to the family of surface mount antennas from Taoglas Limited. It is categorized under RF and Wireless components. The product line includes various chip antennas for different frequency bands. This specific model targets the 169 MHz segment.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers include CA.69 equivalents from other manufacturers. Cross-reference electrical parameters such as gain and VSWR before substitution. Verify mechanical footprint compatibility with existing PCB layouts.
