CA4-8.000-16-3050-R

Crystals Overview

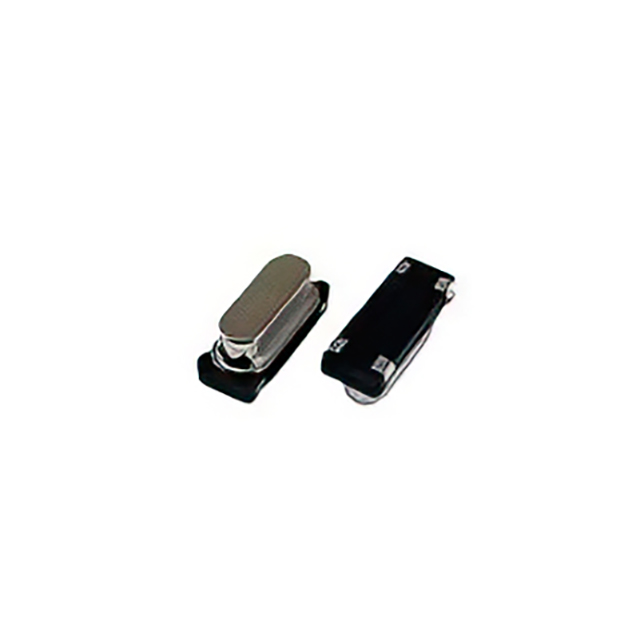

The CA4-8.000-16-3050-R is a surface-mount quartz crystal oscillator manufactured by Aker Technology Corp. It operates at a standard frequency of 8 MHz with a frequency tolerance of ±30 ppm and stability of ±50 ppm. The component features an 18 pF load capacitance and a series resistance of 60 Ohms. It utilizes a 4-SOJ package with a 9.40 mm pitch, measuring approximately 13.5 mm in length, 4.8 mm in width, and 4.6 mm in height. The device supports a temperature range from -40°C to +85°C and complies with RoHS standards.

Crystals Feature Summary

• Surface-mount design for automated assembly
• High-frequency stability within specified temperature ranges
• RoHS compliant construction

Crystals Applications

• Microcontroller clock sources
• Communication equipment timing circuits
• Industrial control systems

Crystals Procurement Notes

Verify the specific package dimensions and electrical parameters against the official manufacturer datasheet before integration. Ensure that the load capacitance requirements of the host circuit match the component's 18 pF specification to maintain accurate frequency performance. Confirm compliance with environmental regulations applicable to the target market.

Crystals Selection Notes

Select this component when a surface-mount quartz crystal with 8 MHz frequency and 18 pF load capacitance is required. Consider the 60 Ohm series resistance and ±30 ppm tolerance for circuit compatibility. Evaluate the 4-SOJ package size constraints against the PCB layout requirements.

Crystals Part Context

This part belongs to the CA4 series of surface-mount crystals from Aker Technology Corp. It shares similar packaging characteristics with other models in the series but differs in frequency and load capacitance specifications. The series is designed for general-purpose timing applications requiring reliable surface-mount solutions.

Crystals Replacement Considerations

Direct substitutes include parts with identical 8 MHz frequency, 18 pF load capacitance, and 4-SOJ package dimensions. Verify equivalent series resistance and tolerance ratings to ensure circuit compatibility without redesign.
