CBPZ16

Overview

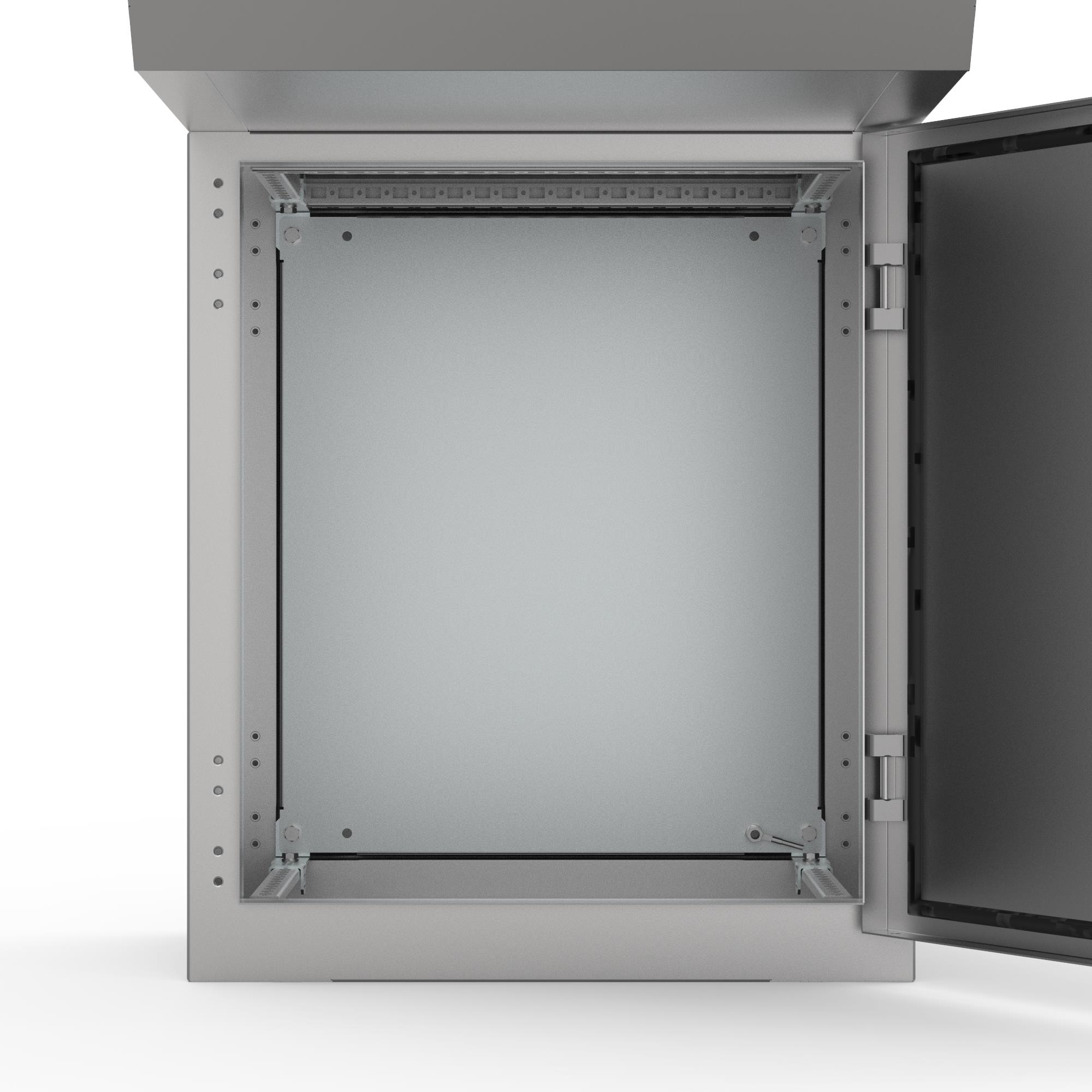

The CBPZ16 is a steel backplate component manufactured by Hoffman Enclosures, Inc., designed for use within the IEC line of enclosure systems. It measures 23.2 inches in height and 63 inches in width. The panel is constructed from galvanized steel with a thickness of 2mm. This component serves as a mounting plate for the 1600 series enclosures.

Feature Summary

• Constructed from galvanized steel for corrosion resistance
• Designed specifically for IEC line enclosure assemblies
• Functions as a structural mounting backplate

Applications

• Mounting plate for 1600 series enclosures
• IEC line enclosure assembly support
• Machine part integration for Hoffman systems

Procurement Notes

Verify that the required enclosure series matches the 1600 designation to ensure compatibility. Confirm that the IEC line specification aligns with the system design requirements. Check that the galvanized steel finish meets environmental protection standards for the intended installation location. Ensure the 2mm thickness is sufficient for the planned load-bearing application.

Selection Notes

Select this component when integrating hardware into the Hoffman IEC line. The 63-inch width and 23.2-inch height dimensions must match the target enclosure footprint. The galvanized steel material provides necessary durability for industrial environments. Verify that the 1600 series compatibility is required for the specific project constraints.

Part Context

This part belongs to the Hoffman Enclosures component family, specifically categorized under box components and backplates. It is an integral structural element for larger industrial enclosure assemblies rather than a standalone unit. The product supports the mechanical integrity of the IEC line framework.

Replacement Considerations

No public confirmed substitute part numbers are available.
