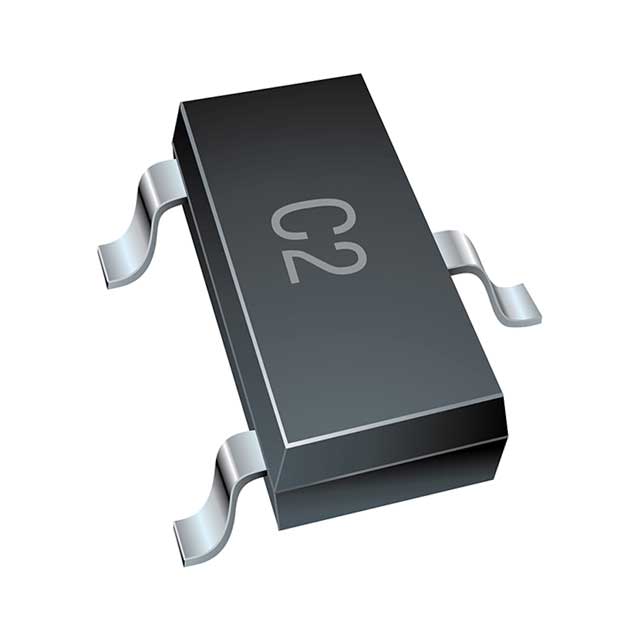

CDSOT23-T24CAN

CDSOT23-T24CAN is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Bourns Inc.. Its product description is TVS DIODE 24VWM 40VC SOT23. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for CDSOT23-T24CAN

• Description：TVS DIODE 24VWM 40VC SOT23
• Series：-
• Mfr：Bourns Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：2
• Voltage - Reverse Standoff (Typ)：24V
• Voltage - Breakdown (Min)：26.2V
• Voltage - Clamping (Max) @ Ipp：40V
• Current - Peak Pulse (10/1000µs)：8A (8/20µs)
• Power - Peak Pulse：-
• Power Line Protection：No
• Applications：CAN
• Capacitance @ Frequency：22pF @ 1MHz
• Operating Temperature：-40°C ~ 150°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：TO-236-3, SC-59, SOT-23-3
• Supplier Device Package：SOT-23
• Unidirectional Channels：-
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for CDSOT23-T24CAN
