CFD69383P-30D43F

$87.28

Description：RF ANT FLAT PANEL FML PANEL MT
Series：CBRS
Mfr：TE Connectivity
Package：Bulk

SKU:040db3b413ea Category: RF Antennas Brand: TE Connectivity

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CFD69383P-30D43F is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is RF ANT FLAT PANEL FML PANEL MT. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for CFD69383P-30D43F

Description：RF ANT FLAT PANEL FML PANEL MT
Series：CBRS
Mfr：TE Connectivity
Package：Bulk
RF Family/Standard：Cellular, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：-
Frequency Range：-
Antenna Type：Flat Panel
Number of Bands：3
VSWR：2
Return Loss：-
Gain：6dBi
Features：Cable - 300mm
Termination：4.3/10 - Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：0.299" (7.60mm)
Applications：LTE, WiMax™
Power - Max：50 W

Antennas RF datasheet and documents for CFD69383P-30D43F

CFD69383P-30D43F

Antennas RF Overview

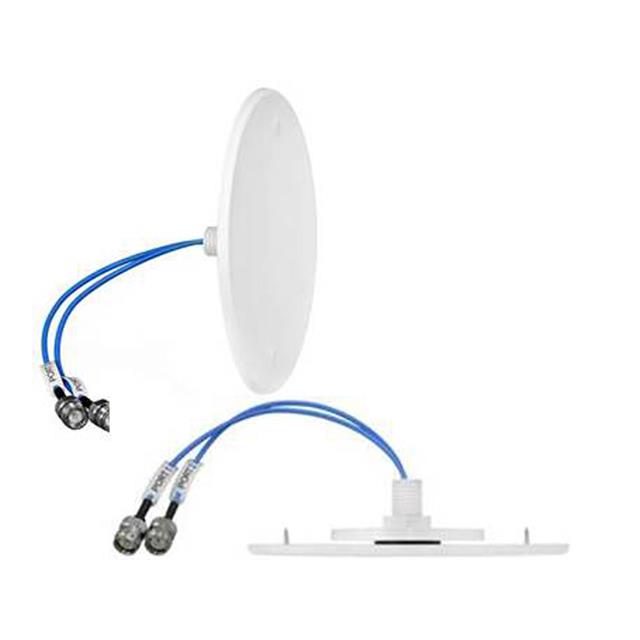

The TE Connectivity CFD69383P-30D43F is a multiprotocol indoor MIMO antenna designed for ceiling mounting. It operates within a frequency range of 698 MHz to 4 GHz, covering bands including AWS-3, CBRS/WiMAX, LTE, and WCS. The unit features a 300 mm cable with a 4.3-10 female connector. Technical specifications include gains of 4.2 dBi, 5 dBi, and 5.4 dBi across the spectrum, a bandwidth of 3.5 GHz, and an impedance of 50 Ohms. VSWR ratings are 1.5:1 and 2:1, with a power rating of 50 W. The module measures 7.6 mm in height and supports linear polarization.

Antennas RF Feature Summary

Ultra-low profile design optimized for indoor ceiling installation
Dual-port MIMO configuration for multipath mitigation
Broadband coverage supporting multiple wireless protocols

Antennas RF Applications

AWS-3 frequency band deployment
CBRS and WiMAX network infrastructure
LTE cellular system integration
WCS (Wireless Communication Service) applications

Antennas RF Procurement Notes

Verify that the specific part number matches the required frequency bands and connector type for your installation. Confirm that the 4.3-10 female termination aligns with existing cabling infrastructure. Ensure the ceiling mount style suits the physical environment. Check RoHS compliance requirements if applicable to your project standards. Validate the power rating against your system's output capabilities.

Antennas RF Selection Notes

Select this model when ultra-low profile aesthetics and performance are critical for indoor environments. The dual-port MIMO capability addresses signal degradation caused by multipath interference. Consider the 300 mm cable length for routing flexibility between the antenna and radio equipment. Verify compatibility with supported frequency ranges such as AWS-3 and CBRS before finalizing the procurement decision.

Antennas RF Part Context

This component belongs to the CFD series of ultra-low-profile antennas from TE Connectivity. These units are engineered specifically for indoor multiprotocol deployments where space constraints and aesthetic integration are priorities. The series utilizes proprietary optimization tools to ensure consistent performance across diverse wireless standards while maintaining a minimal physical footprint.
