CFD69383P-30NF

Antennas RF Overview

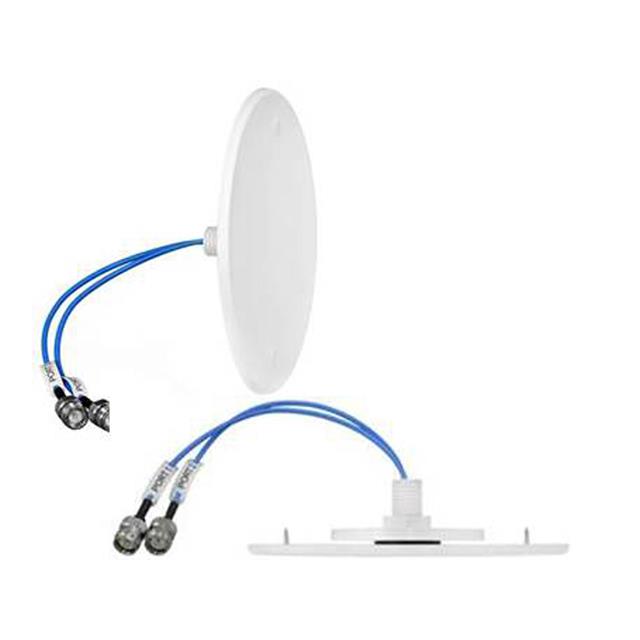

The TE Connectivity CFD69383P-30NF is a flat panel RF antenna designed for indoor applications. It operates across three frequency bands: 698MHz to 960MHz, 1.35GHz to 1.55GHz, and 1.69GHz to 3.8GHz. The component provides a gain of 5.8dBi with an N-type female connector. It supports GSM, LTE, and WiMax protocols, featuring a maximum power rating of 50W and a VSWR of 2. The unit measures 7.60mm in height and utilizes panel mounting.

Antennas RF Feature Summary

• Supports multi-protocol communication including GSM, LTE, and WiMax standards
• Ultra-low-profile flat panel design suitable for discreet indoor installation
• Integrated N-type female connector for direct cable attachment

Antennas RF Applications

• Indoor cellular network coverage expansion
• WiMax broadband infrastructure deployment
• CBRS band signal distribution

Antennas RF Procurement Notes

Verify the specific suffix configuration against project requirements to ensure compatibility with existing cabling and mounting hardware. Confirm that the N-type female termination matches the connected transmission line interface. Check manufacturer documentation for current RoHS compliance status and environmental operating limits before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when a low-profile indoor solution is required for multiple cellular bands. Ensure the installation environment allows for panel mounting within the specified height constraints. Verify that the 50W power handling capacity aligns with the transmitter output levels to prevent component damage during operation.

Antennas RF Part Context

This component belongs to the CBRS series of multiprotocol antennas manufactured by TE Connectivity. It is part of a family of ultra-low-profile MIMO ceiling mount antennas designed for modern wireless infrastructure. The base product number CFD69383 indicates its core architectural lineage within the indoor antenna portfolio.

Antennas RF Replacement Considerations

CFSA69383P-30NF shares identical electrical specifications and mechanical dimensions but differs in connector type or series designation. CFD69383P-B30NF offers similar performance with a 6dBi gain rating. Verify physical connector interfaces and exact frequency range overlaps before substituting.
