CFD69383P-B30D43F

Antennas RF Overview

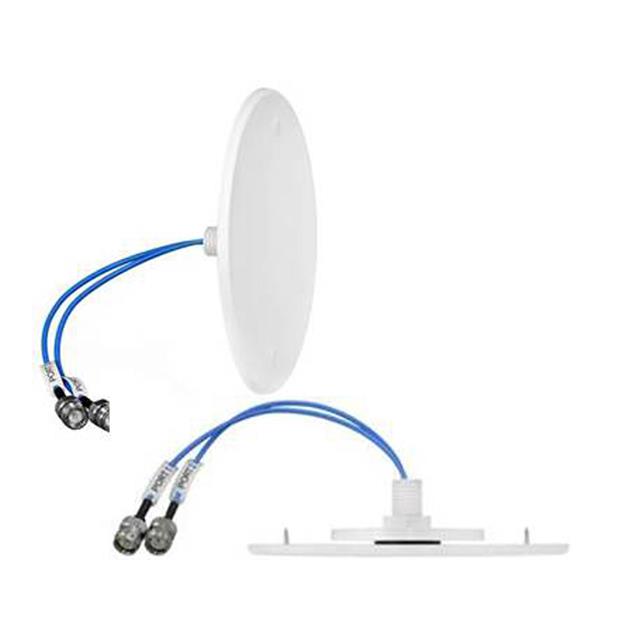

The TE Connectivity CFD69383P-B30D43F is a multiprotocol MIMO indoor antenna designed for ceiling or panel mounting. It operates within the 698 MHz to 4 GHz frequency range, covering AWS-3, CBRS/WiMAX, LTE, and WCS bands. The unit features a 300 mm cable with a 4.3-10 female connector. Electrical specifications include gains of 4.2 dBi, 5 dBi, and 5.4 dBi across bands, a 3.5 GHz bandwidth, and 50 Ohm impedance. VSWR ratings are 1.5:1 and 2:1, with a 50 W power rating. Physical dimensions are 7.6 mm height, supporting an operating temperature from -30 C to +70 C.

Antennas RF Feature Summary

• Supports MIMO configurations for optimized indoor coverage in wideband applications
• Ultra-low profile module design suitable for ceiling or panel installation
• Integrated linear polarization with omnidirectional radiation pattern

Antennas RF Applications

• LTE networks
• AWS-3 spectrum allocation
• CBRS and WiMAX systems
• WCS deployments

Antennas RF Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure correct cable length and connector type compatibility. Confirm RoHS compliance status and ECCN classification for export requirements prior to purchase. Cross-reference the TE Connectivity internal part number to avoid substitution errors during procurement.

Antennas RF Selection Notes

Select this model for indoor environments requiring low-profile antennas that support multiple cellular protocols simultaneously. Ensure the 4.3-10 female interface matches existing cabling infrastructure. Validate that the 50 W power handling capacity aligns with system transmitter output levels and environmental temperature constraints.

Antennas RF Part Context

This component belongs to the CFD series of ultra-low-profile MIMO ceiling mount antennas by TE Connectivity. The series targets indoor distributed antenna systems (DAS) and small cell deployments. It provides broadband coverage for modern wireless standards while maintaining a minimal physical footprint for aesthetic integration.

Antennas RF Replacement Considerations

CFD69383P-30D43F serves as a variant within the same product family with identical mechanical form factor but potentially different packaging or minor specification adjustments.
