CFD69383P1-30NF

Antennas RF Overview

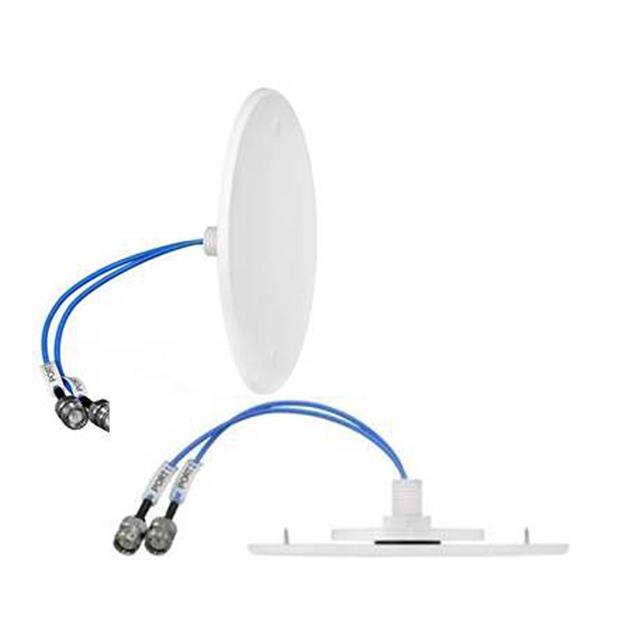

The TE Connectivity CFD69383P1-30NF is a multi-band MIMO antenna designed for indoor applications. It operates across frequency ranges of 698MHz to 4GHz, supporting protocols including LTE and WiFi. The unit features a Type N female connector and offers a peak gain between 3.7dBi and 6.0dBi with a 50 Ohm impedance. Rated for 50W input power, it utilizes linear horizontal polarization and maintains a VSWR typically at or below 2:1. The antenna supports ceiling mounting and functions within an operating temperature range of -30°C to +70°C.

Antennas RF Feature Summary

• Multi-band MIMO design supporting wide-area communication protocols
• Low-profile plate construction optimized for indoor ceiling installation
• Linear horizontal polarization with standardized Type N female interface

Antennas RF Applications

• Indoor cellular coverage enhancement for LTE networks
• CBRS and WiMAX signal distribution
• Wide-area low-power application connectivity

Antennas RF Procurement Notes

Verify the specific datasheet version to confirm exact gain values and VSWR curves, as specifications may vary slightly by revision. Ensure the connector type matches the system requirements, as this model uses a Type N female interface. Confirm that the ceiling mounting style aligns with the physical installation constraints of the target environment before finalizing procurement.

Antennas RF Selection Notes

Select this component when a multi-band solution is required for indoor environments supporting both LTE and CBRS/WiMAX frequencies. The MIMO capability makes it suitable for systems requiring spatial diversity. Consider the ceiling mount form factor and Type N connector compatibility during system integration planning to ensure proper mechanical and electrical interfacing.

Antennas RF Part Context

This part belongs to the CFD series of low-profile panel-mount dipole antennas from TE Connectivity. These antennas are engineered specifically for low-power, wide-area (LPWA) applications. The series provides versatile indoor coverage solutions with standardized connectors and robust performance across multiple wireless communication bands.

Antennas RF Replacement Considerations

CFSA69383P-30NF is a related flat panel variant but differs in mounting style and connector configuration. CFD69383P-30D43F is another series member but utilizes a 4.3-10 female connector and includes a cable assembly rather than a direct panel mount interface.
