CGGBP.35.2.A.08

Antennas RF Overview

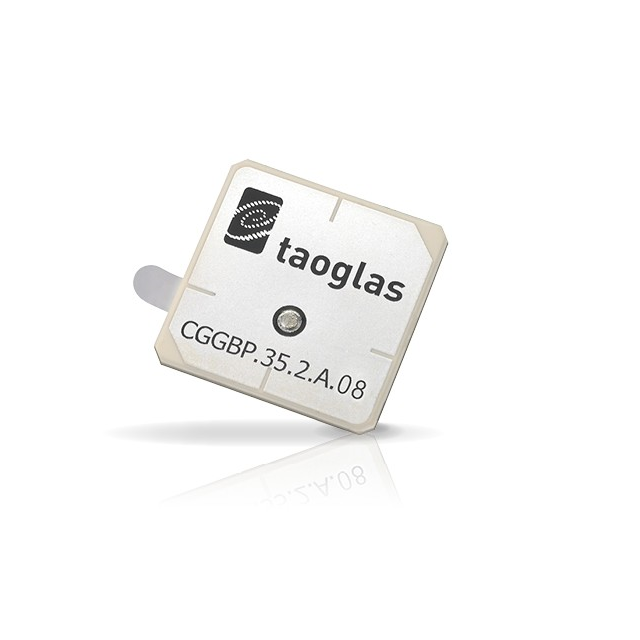

The CGGBP.35.2.A.08 is a ceramic GNSS L1 embedded passive patch antenna supporting GPS, GLONASS, Galileo, and BeiDou systems. It features a low profile of 2mm thickness with dimensions of 35.5 mm length. The maximum operating frequency is 1.607 GHz, and the impedance is 50 Ohms. The maximum operating temperature is +85 C. The mechanical style is a patch antenna with a pin adhesive configuration.

Antennas RF Feature Summary

• Low profile design with 2mm thickness for embedded applications
• Supports multiple GNSS protocols including GPS, GLONASS, Galileo, and BeiDou
• Ceramic construction for durability and performance

Antennas RF Applications

• Embedded GNSS receiver integration
• Navigation systems requiring multi-constellation support
• Compact device positioning modules

Antennas RF Procurement Notes

Verify the specific datasheet version and ordering suffix to ensure compatibility with your system requirements. Confirm that the pin adhesive mounting method aligns with your assembly process. Check the latest RoHS compliance status and environmental certifications before finalizing procurement decisions.

Antennas RF Selection Notes

Select this component when a low-profile, multi-band GNSS solution is required for embedded designs. Ensure the 50 Ohm impedance matches your RF circuitry. Consider the +85 C operating temperature limit for thermal management in enclosed spaces.

Antennas RF Part Context

This part belongs to Taoglas' CGGBP series of compact ceramic patch antennas. These antennas are designed for high-performance GNSS applications where space constraints are critical. The series supports various global navigation satellite systems.

Antennas RF Replacement Considerations

Consult official Taoglas documentation for direct substitutes. Verify interface and dimensional compatibility if considering alternative models from other manufacturers.
