CGGBP254.07.0100A

Antennas RF Overview

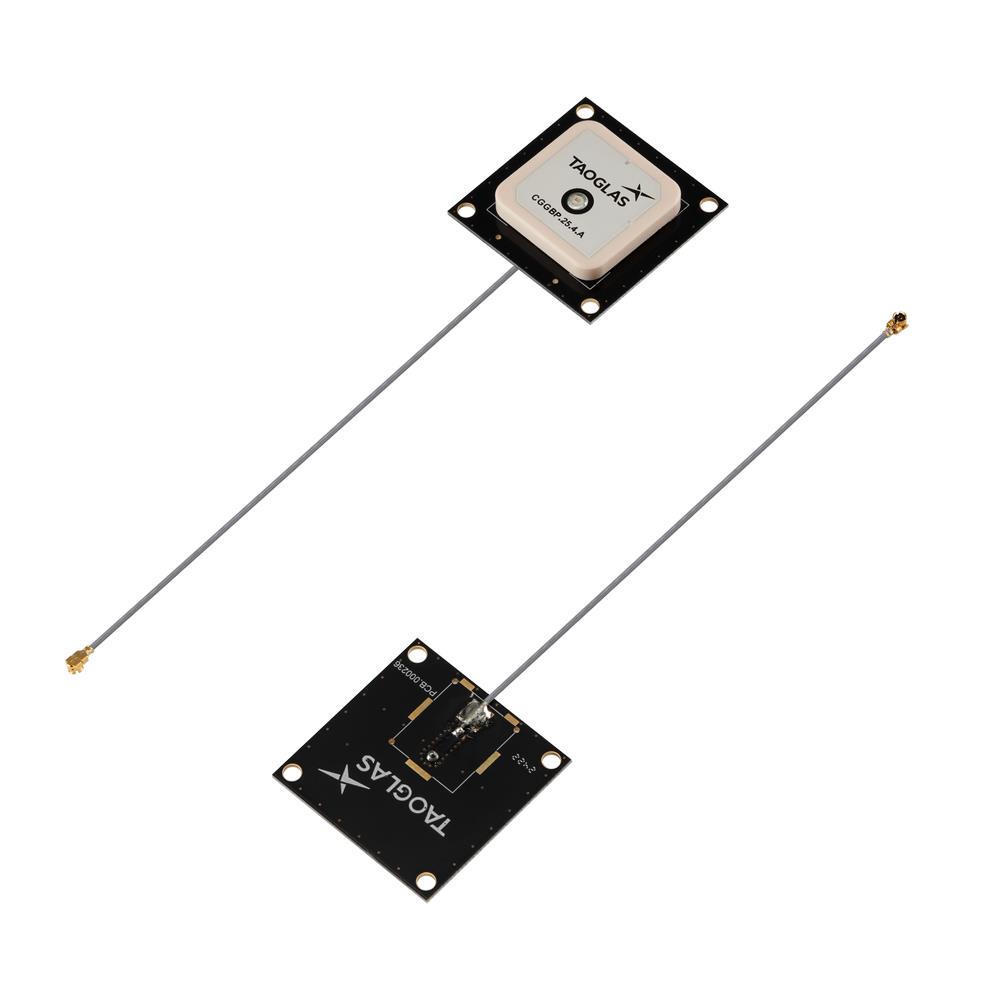

The CGGBP254.07.0100A is a passive multi-band GNSS patch antenna manufactured by Taoglas Limited. It operates at a center frequency of 1.603GHz, supporting GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and IRNSS systems. The unit features a ceramic and PCB internal construction with a physical form factor of 25x25x4mm. It provides a gain of 2.5dB and utilizes an I-PEX MHF connector via a 100mm cable for chassis mounting.

Antennas RF Feature Summary

• Supports multiple global navigation satellite systems including GPS, GLONASS, Galileo, and BeiDou
• Passive design utilizing ceramic and PCB internal construction
• Compact 25x25x4mm physical form factor suitable for embedded applications

Antennas RF Applications

• GPS positioning modules
• GLONASS navigation receivers
• Galileo satellite tracking devices
• BeiDou integration systems

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against system interface specifications before procurement. Confirm that the passive nature of the antenna aligns with the receiver's signal processing capabilities. Ensure the chassis mounting method is compatible with the intended enclosure design to maintain structural integrity and RF performance.

Antennas RF Selection Notes

Select this component when a low-profile, multi-band solution is required for standard L1 band GNSS applications. The passive architecture eliminates the need for external power supplies, simplifying system design. Consider the 100mm cable length for routing flexibility within the host device enclosure while maintaining signal integrity.

Antennas RF Part Context

This part belongs to Taoglas' portfolio of embedded GNSS antennas designed for space-constrained mobile and IoT devices. It complements other models in the series by offering broad constellation support in a standardized footprint. The product is engineered for reliable performance across diverse environmental conditions typical of consumer and industrial electronics.

Antennas RF Replacement Considerations

Consult official manufacturer documentation for confirmed substitute part numbers. Verify compatibility regarding frequency bands, connector types, and mechanical dimensions before substitution.
