CLV1L-FKB-CJ1N1E1BB7B3B3

LED Indication - Discrete Overview

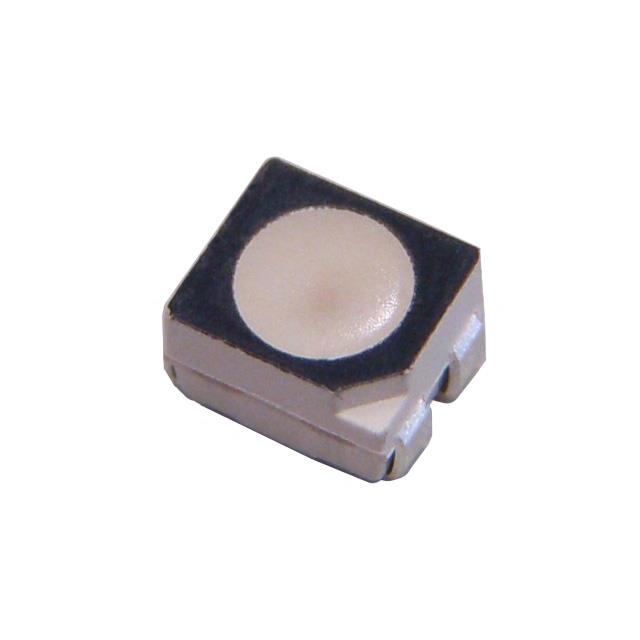

The CLV1L-FKB-CJ1N1E1BB7B3B3 is a surface-mount RGB LED from Cree LED, housed in a compact PLCC-4 package. It features a round flat lens with a colorless appearance and a 120-degree viewing angle. The component integrates red, green, and blue chips emitting at peak wavelengths of 622nm, 528nm, and 468nm respectively. Forward voltages are specified as 2V for the red channel and 3.1V for both green and blue channels.

LED Indication - Discrete Feature Summary

• Integrates red, green, and blue light sources within a single surface-mount device
• Features a round flat lens design optimized for top-view applications
• Provides a wide 120-degree viewing angle for broad illumination coverage

LED Indication - Discrete Applications

• LED discrete indication
• Multi-color lighting systems
• Electronic status indicators

LED Indication - Discrete Procurement Notes

Verify the specific ordering identifier against official Cree LED documentation to ensure accurate part selection. Confirm that the PLCC-4 package and wavelength specifications align with your circuit requirements. Check for moisture sensitivity handling instructions if storage conditions exceed recommended limits. Ensure compatibility with standard SMD/SMT assembly processes.

LED Indication - Discrete Selection Notes

Select this component when a compact RGB solution is required for space-constrained designs. The PLCC-4 package offers a small footprint suitable for dense PCB layouts. Consider the specific forward voltage requirements for each color channel during driver circuit design. The 120-degree viewing angle makes it appropriate for applications requiring wide dispersion rather than focused beams.

LED Indication - Discrete Part Context

This model belongs to the CLV1L series of multi-color LEDs manufactured by Cree LED. The series includes various configurations utilizing different lens shapes and packaging options. The CLV1L-FKB variant specifically denotes the round flat lens configuration within this product family, distinguishing it from other optical profiles available in the broader lineup.

LED Indication - Discrete Replacement Considerations

Consult official Cree LED substitution guides for verified alternative part numbers. Generic cross-references may not match the specific wavelength or voltage characteristics. Verify package dimensions and pinout compatibility before implementing any substitute components in existing designs.
