CMS38606-30NF

Antennas RF Overview

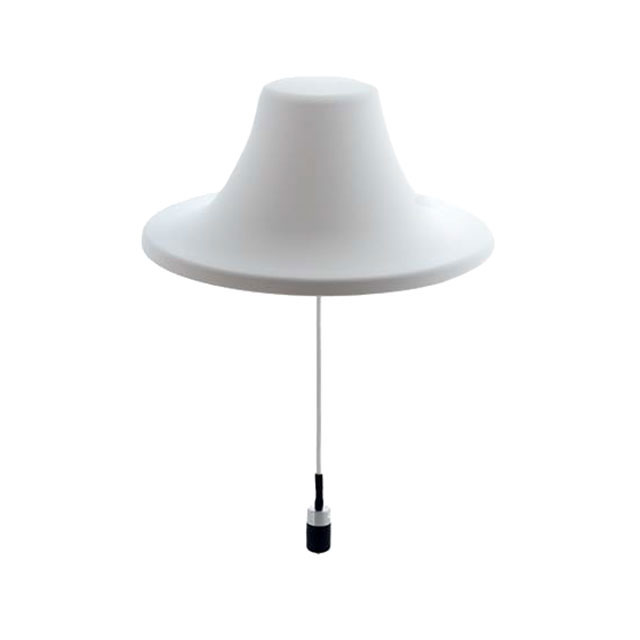

The CMS38606-30NF is a multi-band dome antenna manufactured by TE Connectivity, designed for wideband communication applications. It operates across a frequency range of 380 MHz to 6000 MHz, covering sub-GHz, LTE, CBRS, and WiFi bands. The antenna features a Type N female connector and offers an omnidirectional radiation pattern with vertical polarization. Key electrical specifications include a peak gain ranging from 2.6 dBi to 7.3 dBi and a Voltage Standing Wave Ratio (VSWR) of 1.7. It is engineered for ceiling or wall mounting in distributed antenna systems.

Antennas RF Feature Summary

• Multi-band coverage supporting cellular, CBRS, Cat-M/NB-IoT, and WiFi frequencies
• Omnidirectional radiation pattern with vertical polarization for consistent signal distribution
• Robust dome construction suitable for external ceiling or wall installation environments

Antennas RF Applications

• Distributed Antenna Systems (DAS) for indoor coverage enhancement
• CBRS private network infrastructure deployment
• Cellular backhaul and small cell connectivity solutions

Antennas RF Procurement Notes

Verify the specific connector type and cable length configuration required for your installation, as variations may exist within the product line. Confirm that the mounting surface and environmental conditions align with the antenna's design specifications for optimal performance. Ensure compatibility with existing RF infrastructure before procurement.

Antennas RF Selection Notes

Select this model when broad frequency coverage from sub-GHz to 6 GHz is required in a single unit. It is appropriate for scenarios demanding omnidirectional coverage in commercial or industrial settings. Consider the physical dimensions and mounting requirements against available space constraints in the installation area.

Antennas RF Part Context

This component belongs to TE Connectivity’s suite of RF antennas designed for modern wireless infrastructure. It addresses the need for consolidated antenna solutions that support multiple wireless standards simultaneously. The product supports the transition towards denser network deployments requiring high reliability and wide bandwidth capabilities.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support for direct replacements or cross-reference options based on specific frequency and gain requirements.
