CMS69273P-30NF

Antennas RF Overview

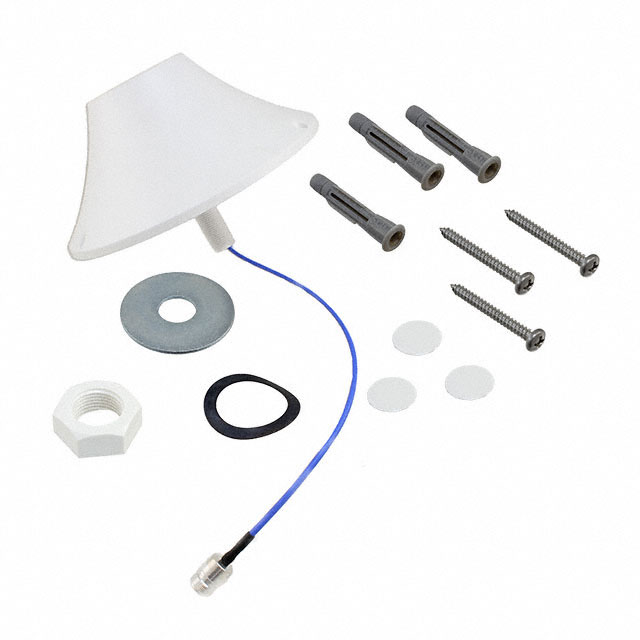

The CMS69273P-30NF is an omnidirectional D-band antenna manufactured by TE Connectivity. It operates within the frequency range of 698 to 2700 MHz, providing a gain of 3 dBi. The unit features a 30 cm coaxial cable and utilizes an N-type connector for interface. The antenna has a maximum height of 86 mm (3.386 inches) and is designed for panel mounting applications.

Antennas RF Feature Summary

• Omnidirectional radiation pattern optimized for indoor coverage requirements
• Multi-band operation supporting cellular, LTE, and ISM frequencies
• Integrated 30 cm coaxial cable with N-type connector

Antennas RF Applications

• In-building wireless distribution systems
• Distributed Antenna Systems (DAS)
• Small cell deployments
• Neutral host network infrastructure

Antennas RF Procurement Notes

Verify that the specific part number suffix matches the required cable length and connector type. Confirm RoHS compliance status and moisture sensitivity level requirements against project specifications. Ensure the mounting hardware supports the specified panel mount configuration and physical dimensions.

Antennas RF Selection Notes

Select this component when an omnidirectional solution is required for indoor multi-band coverage. The integrated cable simplifies installation compared to discrete antenna assemblies. Verify that the N-type connector is compatible with the existing feeder or distribution system cabling in the target deployment environment.

Antennas RF Part Context

This model belongs to the CMS series of antennas from TE Connectivity. The series includes various configurations for different mounting types and cable lengths. The CMS69273P-30NF specifically denotes the variant with a 30 cm cable and N-type interface, distinct from other series members with different physical attributes.

Antennas RF Replacement Considerations

Consult official TE Connectivity documentation for direct cross-reference part numbers. Verify that any substitute maintains the 698-2700 MHz frequency range, 3 dBi gain, and N-type connector compatibility to ensure system performance integrity.
