COACH2-9X1-17FT-FAKRA

Antennas RF Overview

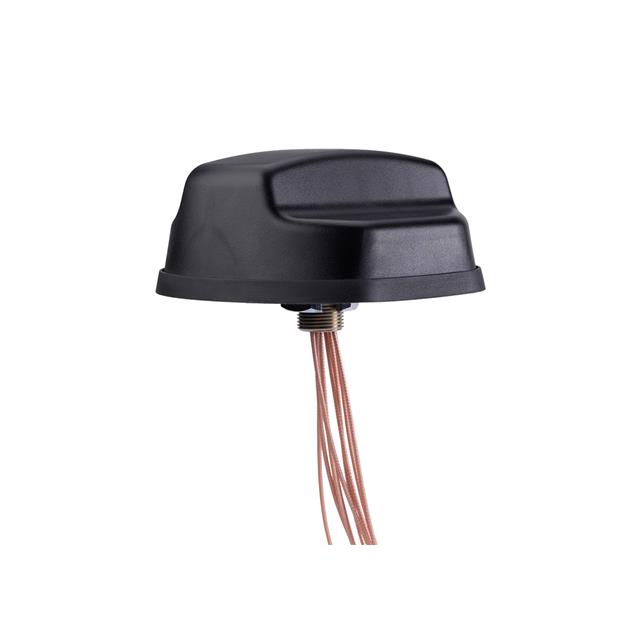

The COACH2-9X1-17FT-FAKRA is a multiprotocol outdoor antenna manufactured by Amphenol PCTEL. It integrates support for 5G, Wi-Fi 6E, and GNSS technologies within a single rugged unit. The device operates across a frequency range of 617 MHz to 5950 MHz. It features FAKRA connectors and supports up to 9x1 ports, accommodating configurations such as 4x4 Cellular and 4x4 Wi-Fi. This multiband combination antenna is designed for high-speed data transmission in demanding environments.

Antennas RF Feature Summary

• Integrates 5G, Wi-Fi 6E, and GNSS protocols into a single physical unit
• Configurable port structure supporting up to 9x1 connections
• Rugged design suitable for outdoor deployment conditions

Antennas RF Applications

• Outdoor telecommunications infrastructure
• Small cell network deployments
• Automotive connectivity systems

Antennas RF Procurement Notes

Verify the specific datasheet version from Amphenol or authorized distributors to confirm exact electrical parameters and mechanical dimensions. Ensure compatibility with existing FAKRA connector interfaces and mounting requirements before procurement. Cross-reference the part number with official manufacturer catalogs to validate current availability and technical specifications.

Antennas RF Selection Notes

Select this model when a consolidated solution for cellular, Wi-Fi, and positioning signals is required. The integrated design reduces installation complexity compared to separate antennas. Consider the operating frequency range and port configuration needs to ensure alignment with system architecture requirements.

Antennas RF Part Context

This component belongs to the Coach II series of multiband antennas produced by Amphenol PCTEL. The series focuses on combining multiple wireless standards into compact, durable packages. The product line targets applications requiring high-performance RF connectivity in constrained spaces or harsh environmental conditions.

Antennas RF Replacement Considerations

Consult official Amphenol documentation for verified substitute part numbers. Generic replacements may not match the specific frequency ranges or connector types.
