CRX450B

Antennas RF Overview

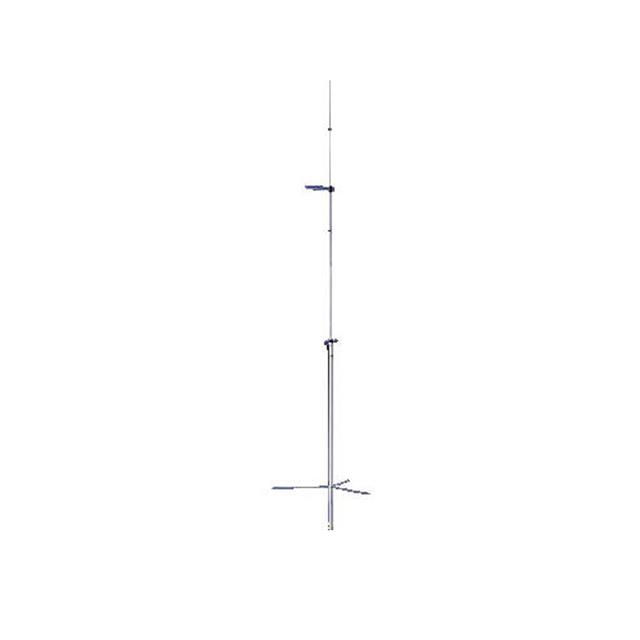

The CRX450B is an obsolete UHF whip antenna manufactured by TE Connectivity, designed for base station applications. It operates within a frequency range of 450MHz to 470MHz, with a center frequency of 460MHz. The component features a straight whip design and provides a gain of 7dBi. It supports a maximum power handling capacity of 500W and maintains a Voltage Standing Wave Ratio (VSWR) of 1.5. The antenna utilizes a UHF female connector for termination and is intended for bracket mounting. Its physical height reaches a maximum of 54.000 inches (137.16cm).

Antennas RF Feature Summary

• Omnidirectional radiation pattern optimized for UHF band coverage.
• High power handling capability suitable for robust transmission environments.
• Straight whip configuration ensures vertical polarization efficiency.

Antennas RF Applications

• UHF base station installations
• Vehicle-mounted communication systems
• Fixed wireless infrastructure

Antennas RF Procurement Notes

This component has been officially declared obsolete by the manufacturer as of September 27, 2022. Procurement is restricted to remaining stock or secondary market sources. Verification of part authenticity and condition is critical due to the discontinued status. Buyers should confirm compatibility with existing mounting hardware and connector interfaces before acquisition.

Antennas RF Selection Notes

Designers must account for the discontinuation of this specific model when planning new deployments. Replacement strategies should prioritize components with identical mechanical dimensions and electrical specifications to ensure seamless integration. Compatibility with UHF female connectors and bracket mounting systems remains a primary selection criterion for substitute parts.

Antennas RF Part Context

The CRX450B belongs to the CRX450 series of RF antennas from TE Connectivity. This series focuses on providing reliable omnidirectional coverage for UHF frequencies. The component represents a standard solution for fixed installation scenarios requiring high gain and durability in outdoor or industrial environments.

Antennas RF Replacement Considerations

TE Connectivity recommends the FG4507 and FG4607 as direct substitutes for the CRX450B. These alternatives maintain similar performance characteristics and are available through authorized channels. Engineers should verify that the replacement models meet all original mechanical and electrical requirements.

Antennas RF FAQ

What is the current manufacturing status of the CRX450B?

The CRX450B is obsolete and no longer in production as of September 27, 2022.

What is the maximum power rating for this antenna?

The antenna supports a maximum power handling capacity of 500W.
