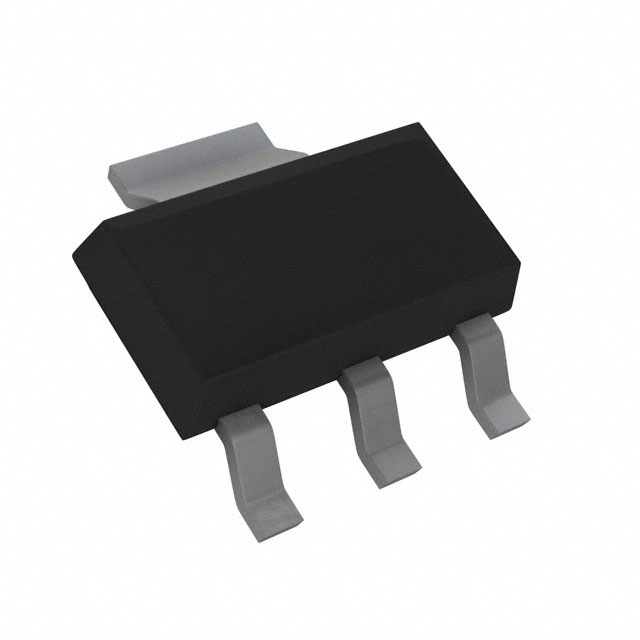

CS223-4M TR PBFREE
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：SCR 600V 4A SOT223
- Series：-
- Mfr：Central Semiconductor Corp
- Package：Tape & Reel (TR)
- Voltage - Off State：600 V
- Voltage - Gate Trigger (Vgt) (Max)：800 mV
- Current - Gate Trigger (Igt) (Max)：200 µA
- Current - Hold (Ih) (Max)：2 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm)：30A @ 50Hz
- SCR Type：Standard Recovery
- Operating Temperature：-50°C ~ 125°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Package / Case：TO-261-4, TO-261AA
- Supplier Device Package：SOT-223
- Voltage - On State (Vtm) (Max)：2.2 V
- Current - On State (It (AV)) (Max)：-
- Current - On State (It (RMS)) (Max)：4:00 AM
- Current - Off State (Max)：10 µA
Download product information
Overview
The CS223-4M TR PBFREE is a surface mount silicon controlled rectifier manufactured by Central Semiconductor Corp. It features an epoxy molded SOT-223 package and supports a peak repetitive off-state voltage of 600 V. The device handles a root mean square on-state current of 4.0 A at 85°C case temperature, with a peak one-cycle surge capability of 30 A. Key electrical parameters include a gate trigger current ranging from 20 to 200 μA and a holding current between 1.0 and 2.0 mA. The component operates within a junction temperature range of -50 to +125°C.
Feature Summary
- Designed for sensing circuit applications and control systems
- Utilizes an epoxy molded SOT-223 surface mount package
- Features high thermal resistance characteristics for reliable operation
Applications
- Sensing circuits
- Control systems
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to confirm packaging details such as reel quantity and lead finish specifications. Ensure that the procurement channel sources directly from authorized distributors or the manufacturer to guarantee authenticity and compliance with RoHS standards. Cross-reference the datasheet revision date during acquisition to ensure access to the most current technical specifications and mechanical outlines.
Selection Notes
Select this component when a surface mount SCR with a 600 V blocking voltage and 4.0 A continuous current rating is required. Verify that the application environment stays within the specified operating junction temperature limits. Consider the SOT-223 footprint constraints and thermal dissipation requirements relative to the stated thermal resistance value. Confirm compatibility with the intended gate drive circuitry based on the provided trigger current specifications.
Part Context
This part belongs to the CS223 series of surface mount silicon controlled rectifiers produced by Central Semiconductor Corp. The series includes variants with different voltage ratings, such as the CS223-4N which offers 800 V blocking capability. These devices are engineered for compact designs requiring robust switching performance in small form factor packages suitable for automated assembly processes.
Replacement Considerations
Direct substitutes must match the 600 V rating, 4.0 A RMS current, and SOT-223 package outline. Verify equivalent gate trigger characteristics and thermal resistance values before implementation.
