CSCF2014B-220MC

Fixed Inductors Overview

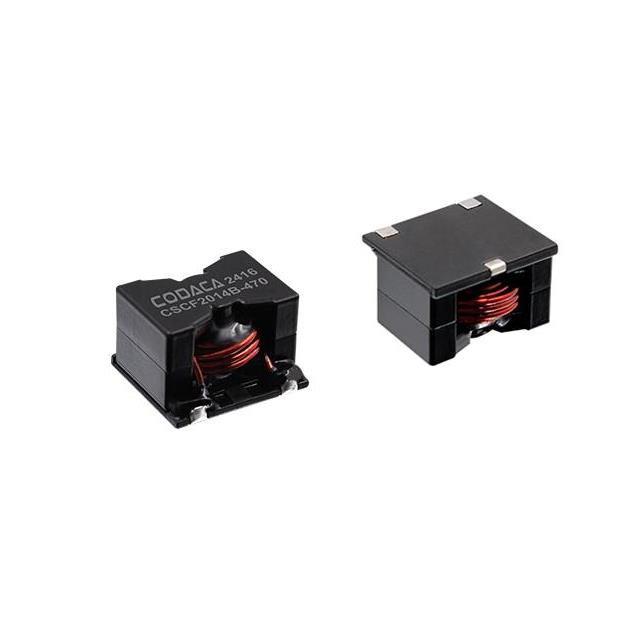

The CSCF2014B-220MC is a shielded wirewound power inductor from CODACA, designed for surface-mount applications. It features a vertical configuration with three PC pins and offers an inductance of 22 µH with ±20% tolerance. The component supports a maximum DC current of 9.5 A and maintains a low DC resistance (DCR) of 16.8 mΩ max. Constructed with a ferrite core, it operates within a temperature range of -40°C to +125°C and complies with RoHS standards.

Fixed Inductors Feature Summary

• Vertical mounting structure with three PC pins for robust mechanical stability
• Magnetic shielding design utilizing ferrite core material to minimize electromagnetic interference
• Low DC resistance construction optimized for high efficiency and reduced thermal loss
• High current handling capability suitable for demanding power supply environments

Fixed Inductors Applications

• LED driver circuits
• LED power supplies
• Buck converter topologies
• Laptop power management systems
• Network communication equipment

Fixed Inductors Procurement Notes

Verify the specific suffix 'B' against the manufacturer's latest datasheet to confirm pinout orientation and electrical tolerances. Ensure the selected packaging format aligns with automated assembly requirements. Cross-reference the DCR and saturation current specifications with the target application's peak load conditions to prevent performance degradation under stress.

Fixed Inductors Selection Notes

Select this component when a vertical form factor with through-hole style pins is required for surface-mount PCBs. The low DCR value makes it suitable for high-efficiency designs where thermal management is critical. Consider the 9.5 A rating relative to the system's continuous current needs and ensure the operating temperature range covers the environmental extremes of the final product deployment.

Fixed Inductors Part Context

This part belongs to CODACA's CSCF2014 series of high-current power inductors. The series utilizes flat wire technology to achieve superior current handling and low losses compared to traditional wirewound designs. The CDRH125NP-220MC from Sumida serves as a functional equivalent in terms of inductance but differs significantly in package geometry and current ratings.

Fixed Inductors Replacement Considerations

• SPRH125-220M by CODACA

Fixed Inductors FAQ

What is the core material used in the CSCF2014B-220MC?

The inductor uses a ferrite core material combined with a magnetic shielding structure.

Does the CSCF2014B-220MC support surface mount technology?

Yes, it is designed for SMT processes despite having three PC pins for vertical mounting.
