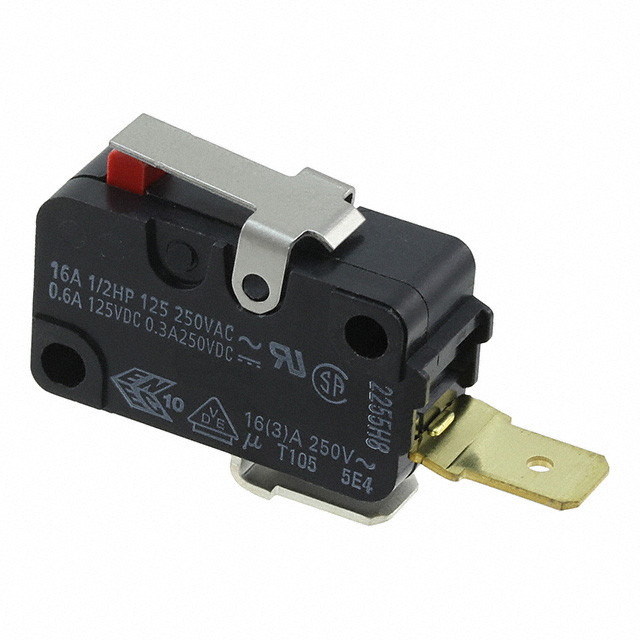

D3V-162M-3C5

D3V-162M-3C5 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACT SPST-NO 16A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D3V-162M-3C5

• Description：SWITCH SNAP ACT SPST-NO 16A 250V
• Series：D3V
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Current Rating (Amps)：16A (AC), 10A (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Lever, Straight
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Ingress Protection：IP40
• Features：-
• Operating Force：125gf
• Release Force：14gf
• Operating Position：0.600" (15.2mm)
• Pretravel：0.157" (4.0mm)
• Differential Travel：0.060" (1.5mm)
• Overtravel：0.062" (1.6mm)
• Operating Temperature：-25°C ~ 105°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for D3V-162M-3C5
