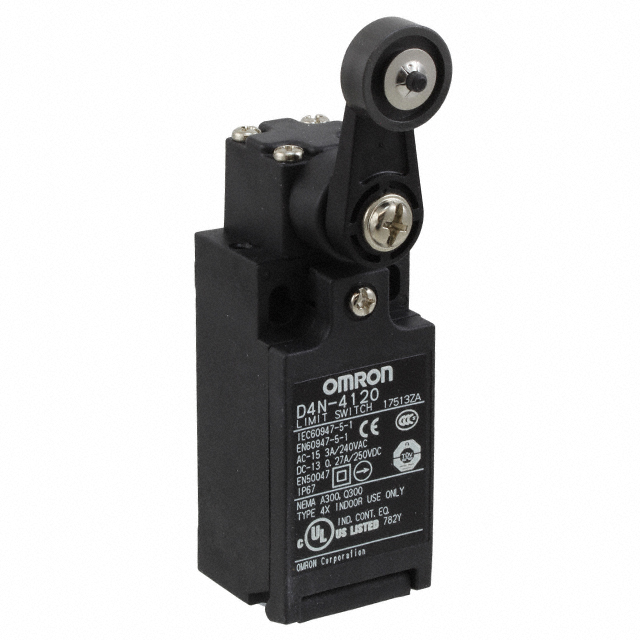

D4N-4120

D4N-4120 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is SWITCH SNAP ACTION DPST 3A 240V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D4N-4120

• Description：SWITCH SNAP ACTION DPST 3A 240V
• Series：D4N
• Mfr：Omron Automation and Safety
• Package：Bulk
• Circuit：DPST-NO/NC
• Switch Function：On-Mom, Off-Mom
• Current Rating (Amps)：3A (AC), 270mA (DC)
• Voltage Rating - AC：240 V
• Actuator Type：Side Rotary, Roller
• Mounting Type：Chassis Mount
• Termination Style：Screw Terminal
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：Resin Lever, Resin Roller
• Operating Force：510gf
• Release Force：51gf
• Operating Position：-
• Pretravel：18°
• Differential Travel：14°
• Overtravel：40°
• Operating Temperature：-30°C ~ 70°C
• Voltage Rating - DC：250 V

Limit Switches datasheet and documents for D4N-4120
