DBA6927C1-FSMAM

Antennas RF Overview

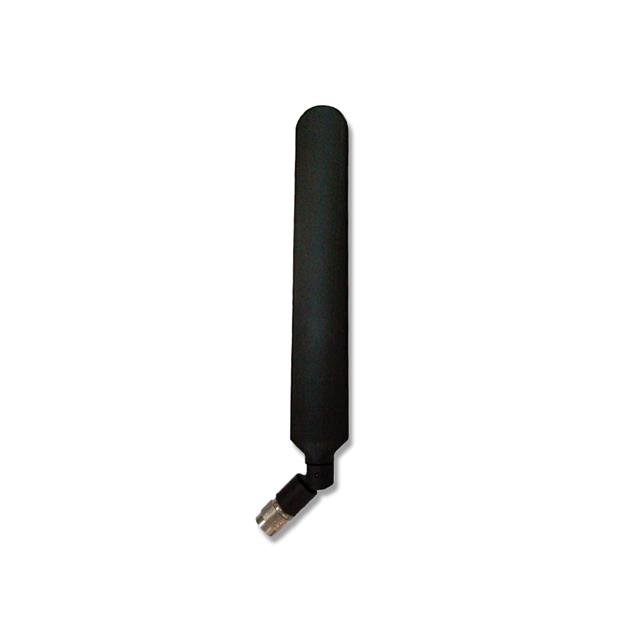

The DBA6927C1-FSMAM is an omnidirectional wide-band cellular antenna manufactured by TE Connectivity. It operates across a frequency range of 698 MHz to 960 MHz and 1.71 GHz to 2.7 GHz, covering bands such as 700 MHz, 800 MHz, 1800 MHz, 1900 MHz, 2100 MHz, and 2500 MHz. The component features a gain of 2.2 dBi and utilizes an SMA male connector. Designed for external mounting via stud, screw, or lug methods, it supports Cat-M and NB-IoT protocols.

Antennas RF Feature Summary

• Omnidirectional radiation pattern suitable for broadband wireless applications
• Wide frequency band coverage supporting multiple cellular standards
• Robust external construction with stud, screw, or lug mounting options

Antennas RF Applications

• Cat-M and NB-IoT network infrastructure
• External broadband wireless device connectivity
• Multi-port antenna configurations in communication systems

Antennas RF Procurement Notes

Verify the exact part status, as this model may be listed as obsolete in certain distributor catalogs. Confirm that the SMA male connector interface matches your system requirements. Ensure the external mounting method aligns with your installation constraints. Check RoHS compliance documentation if required for your specific project regulations before finalizing procurement decisions.

Antennas RF Selection Notes

Select this antenna when broad frequency coverage is required for cellular IoT applications. The wide-band design accommodates various LTE and 5G sub-6GHz bands. Consider the external mounting style for environmental protection and signal integrity. Verify compatibility with existing RF interfaces and ensure the gain specifications meet the link budget requirements for the intended deployment scenario.

Antennas RF Part Context

This component belongs to TE Connectivity's Laird Connectivity portfolio of antennas. It is categorized under cellular and WiFi RF families. The dipole blade design provides efficient signal transmission and reception. It is distinct from internal PCB antennas due to its external form factor and higher gain characteristics.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Users should consult official TE Connectivity channels for current equivalent models or updated series replacements if this specific part number is discontinued.
