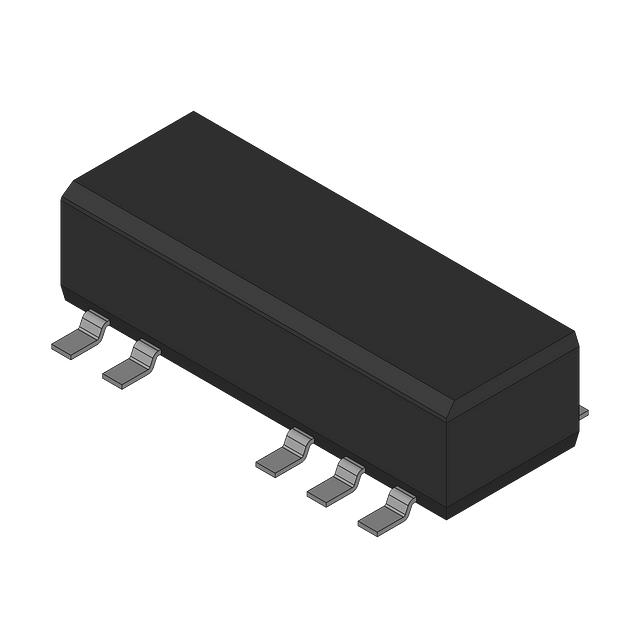

DCP010507DBP-U/7E4

DCP010507DBP-U/7E4 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is DCP010507DB MINIATURE, 1W, ISOLA. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for DCP010507DBP-U/7E4

• Description：DCP010507DB MINIATURE, 1W, ISOLA
• Series：DCP01B (1W)
• Mfr：Texas Instruments
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：6.5V
• Voltage - Output 2：-6.5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：76.5mA, 76.5mA
• Power (Watts)：994.5 mW
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 100°C
• Efficiency：81%
• Mounting Type：Surface Mount
• Package / Case：14-SMD Module, 7 Leads
• Size / Dimension：0.76" L x 0.26" W x 0.21" H (19.2mm x 6.6mm x 5.3mm)
• Supplier Device Package：7-SOP
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for DCP010507DBP-U/7E4
