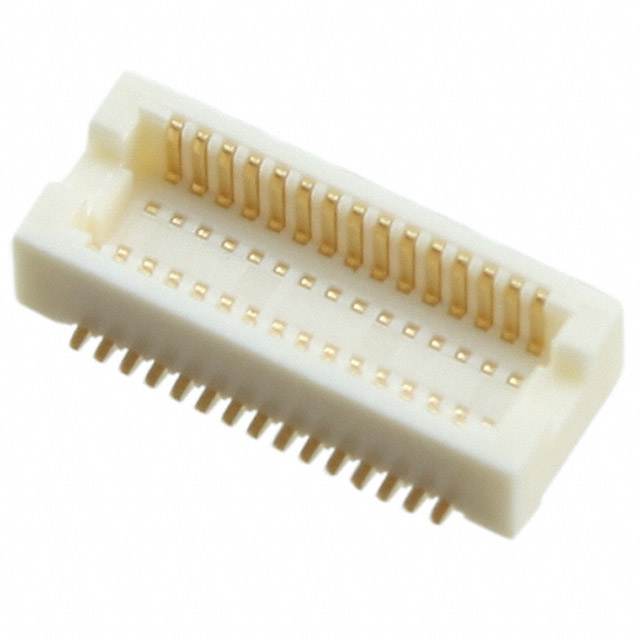

DF12B(3.0)-30DP-0.5V(86)

DF12B(3.0)-30DP-0.5V(86) is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN HDR 30POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for DF12B(3.0)-30DP-0.5V(86)

• Description：CONN HDR 30POS SMD GOLD
• Series：DF12
• Mfr：Hirose Electric Co Ltd
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Header, Outer Shroud Contacts
• Number of Positions：30
• Pitch：0.020" (0.50mm)
• Number of Rows：2
• Mounting Type：Surface Mount
• Features：Solder Retention
• Contact Finish：Gold
• Contact Finish Thickness：8.00µin (0.203µm)
• Mated Stacking Heights：3mm
• Height Above Board：0.091" (2.30mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for DF12B(3.0)-30DP-0.5V(86)
