DF13A-7P-1.25H(20)

Headers, Male Pins Overview

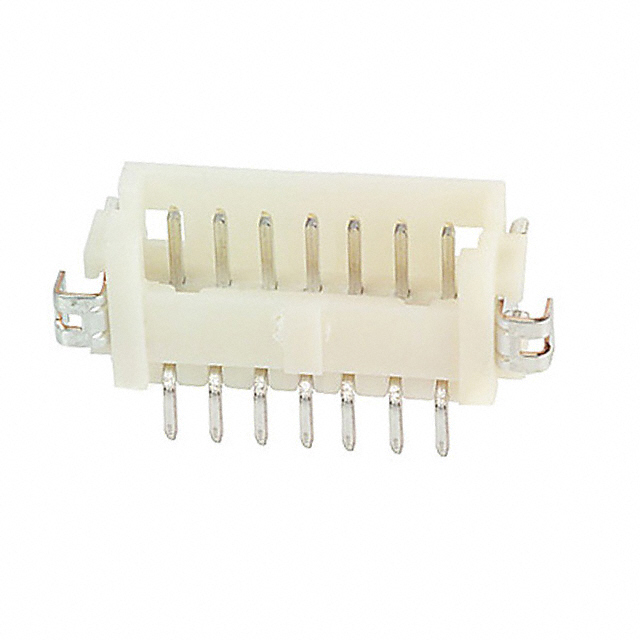

The Hirose DF13A-7P-1.25H(20) is a surface-mount, right-angle pin header from the DF13 series. It features a 1.25 mm pitch and seven positions for wire-to-board connections. The connector utilizes tin-plated brass contacts with a polyamide (PA) housing rated UL94 V-0. It supports a maximum voltage of 150 V and current of 1 A across an operating temperature range of -35°C to +85°C.

Headers, Male Pins Feature Summary

• Right-angle surface mount design for compact PCB integration
• Four-wall shrouded housing for secure mating alignment
• Tin-plated brass contacts ensure reliable conductivity

Headers, Male Pins Applications

• Compact electronic assemblies requiring board-to-cable interconnects
• Consumer electronics with limited vertical space
• Industrial control modules utilizing SMT processes

Headers, Male Pins Procurement Notes

Verify the specific suffix code against official Hirose documentation to confirm exact packaging and plating specifications. Ensure compatibility with mating DF13 series sockets. Confirm RoHS compliance status through current manufacturer declarations as regulatory requirements may vary by production batch.

Headers, Male Pins Selection Notes

Select this component when a single-row, right-angle header is required for dense circuit layouts. The 1.25 mm pitch allows for high pin counts in small footprints. Verify that the 150 V rating and 1 A current capacity meet the application's electrical requirements before finalizing the design.

Headers, Male Pins Part Context

This part belongs to the Hirose DF13 series, designed for miniature applications. The series offers various pin counts and mounting styles. The DF13A variant typically denotes specific housing or contact configurations within the broader family, ensuring interchangeability with other DF13 components where applicable.

Headers, Male Pins Replacement Considerations

Direct substitutes include DF13-7P-1.25H(20) and DF13-7P-1.25H(51). Verify mechanical dimensions and contact material compatibility. Note that some variants may have different end-of-life statuses or packaging types.
