DF22R-5P-7.92DS(05)

Headers, Male Pins Overview

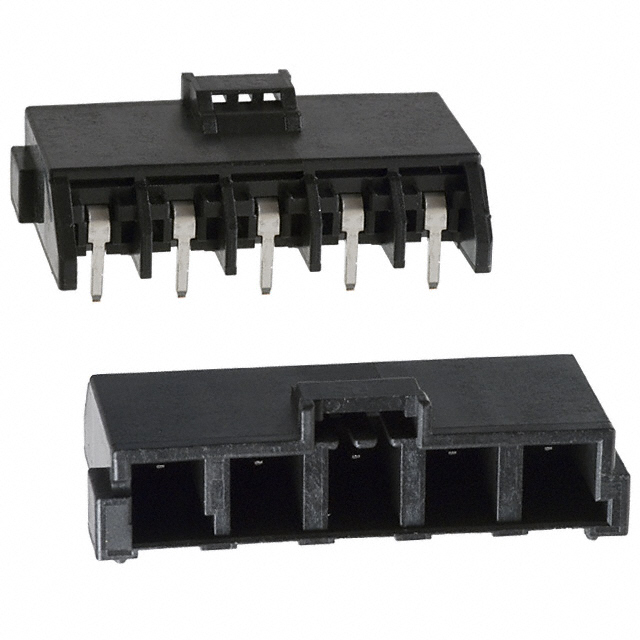

The DF22R-5P-7.92DS(05) is a power-to-board header connector from the Hirose EnerBee DF22 series, manufactured by Hirose Electric Co Ltd. It features five male pin contacts arranged in a single row with a 7.92 mm pitch. Designed for through-hole mounting, this right-angle connector utilizes solder pin termination for secure board attachment. The housing is constructed from black polyamide (PA), providing UL94 V-0 flammability ratings. Electrical specifications include a rated voltage of 1 kV and a current rating of 22 A. The component supports an operating temperature range from -55°C to +85°C and incorporates a four-wall shielded shrouded design.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting configuration for space-efficient board integration
• Shrouded four-wall housing design ensuring proper mating alignment and protection
• High-voltage insulation capabilities supporting up to 1 kVAC/DC operation
• Robust copper alloy contacts with tin plating for reliable conductivity

Headers, Male Pins Applications

• Industrial power distribution systems requiring high-current connections
• Power supply modules connecting to main circuit boards
• Heavy-duty electronic equipment with strict spatial constraints
• Automotive electronics infrastructure components

Headers, Male Pins Procurement Notes

Verify end-of-life status and availability as the manufacturer has issued discontinuation notices for the DF22 series. Confirm specific ordering suffixes for required orientation and packaging. Check for alternative compatible part numbers within the same series if original stock is depleted. Ensure compliance with RoHS directives before final procurement decisions.

Headers, Male Pins Selection Notes

Select this model when right-angle through-hole installation is required for power applications. The 7.92 mm pitch accommodates high-current requirements up to 22 A. Verify that the 1 kV voltage rating meets system isolation needs. Consider the physical dimensions and stacking height constraints relative to adjacent components on the target PCB layout.

Headers, Male Pins Part Context

This component belongs to the EnerBee DF22 series, a line of power connectors designed for demanding industrial and automotive environments. The series offers various configurations including straight and right-angle headers, sockets, and housings. The DF22R variant specifically denotes right-angle headers with reinforced locking mechanisms for secure wire-to-board connections.

Headers, Male Pins Replacement Considerations

Compatible substitutes include DF22R-5P-7.92DSA(05) and DF22R-5P-7.92DSA(53). These alternatives share identical electrical ratings and mechanical footprints but may differ in packaging or minor manufacturing revisions. Verify cross-compatibility with existing mating cables and housings before substitution.
