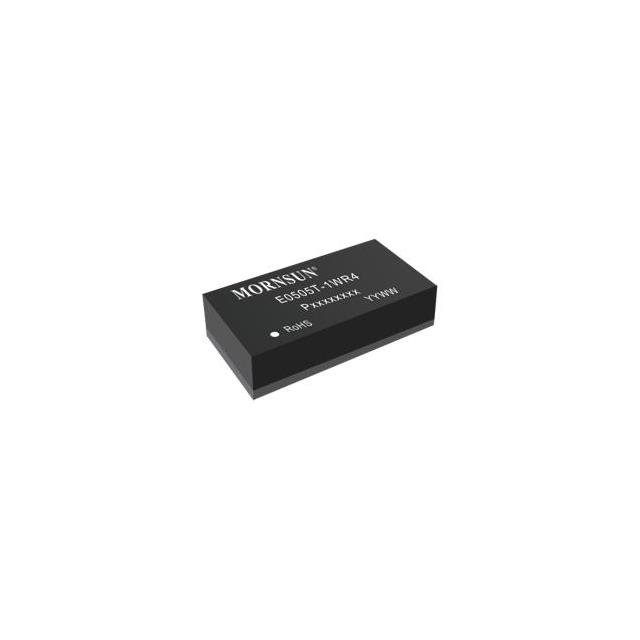

E0505T-1WR4

E0505T-1WR4 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is ISOLATED MODULE DC DC CONVERTER. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for E0505T-1WR4

• Description：ISOLATED MODULE DC DC CONVERTER
• Series：E0505T-1WR4 (1W)
• Mfr：Mornsun America, LLC
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：5V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：100mA, 100mA
• Power (Watts)：1 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 125°C (With Derating)
• Efficiency：87%
• Mounting Type：Surface Mount
• Package / Case：20-SMD Module, 7 Leads
• Size / Dimension：0.52" L x 0.28" W x 0.12" H (13.2mm x 7.0mm x 3.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for E0505T-1WR4
