EAHP.60.01.0100D

$204.71

Description：EMBEDDED ACTIVE ANTENNA FOR GNSS
Series：-
Mfr：Taoglas Limited
Package：Bag

SKU:b4886a4971b9 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

EAHP.60.01.0100D is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is EMBEDDED ACTIVE ANTENNA FOR GNSS. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for EAHP.60.01.0100D

Description：EMBEDDED ACTIVE ANTENNA FOR GNSS
Series：-
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Navigation
Frequency Group：Wide Band
Frequency (Center/Band)：1.176GHz, 1.207GHz, 1.227GHz, 1.248GHz, 1.278GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.603GHz
Frequency Range：-
Antenna Type：Module
Number of Bands：9
VSWR：1
Return Loss：-
Gain：6.67dBi, 6.24dBi, 6.76dBi, 6.76dBi, 6.27dBi, 4.74dBi, 3.74dBi, 3.74dBi, 2.57dBi
Features：LNA, Filter
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Chassis Mount
Height (Max)：1.732" (44.00mm)
Applications：Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, NavIC, QZSS, SBAS
Power - Max：-

Antennas RF datasheet and documents for EAHP.60.01.0100D

EAHP.60.01.0100D

Antennas RF Overview

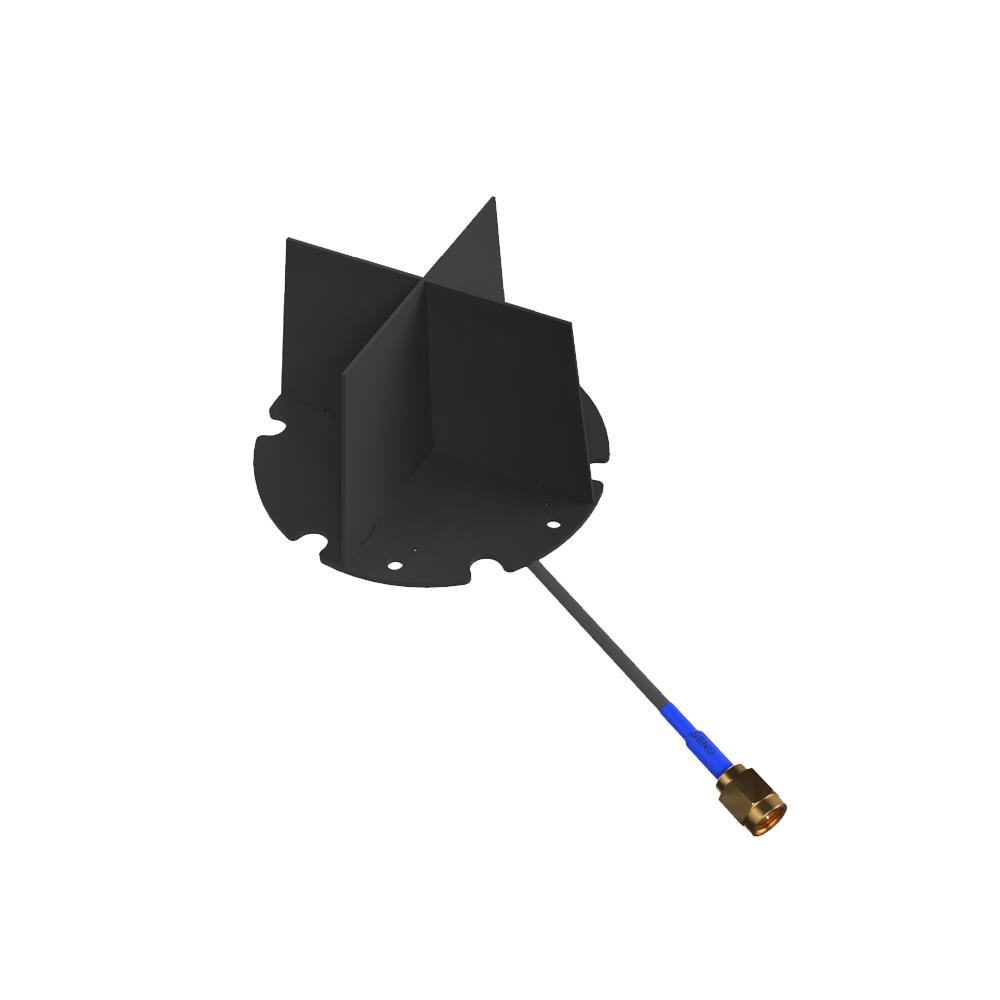

The EAHP.60.01.0100D is an embedded active multi-band GNSS antenna designed for high-performance cm-level positional accuracy. It operates on the full L-Band spectrum, supporting frequencies up to 1.603GHz. The component integrates a Low Noise Amplifier (LNA) and supports multiple global navigation satellite systems including GPS, Glonass, Galileo, BeiDou, QZSS, SBAS, and IRNSS. It features a 100mm RG-174 cable terminated with an SMA(M) connector.

Antennas RF Feature Summary

Embedded active design optimized for compact integration
Multi-band capability covering full L-Band spectrum
Integrated Low Noise Amplifier for signal integrity

Antennas RF Applications

High-precision positioning systems requiring cm-level accuracy
Multi-constellation GNSS receiver platforms
Mobile and embedded navigation devices

Antennas RF Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm cable length and connector type. Confirm RoHS compliance status and country of origin details prior to procurement. Ensure the selected variant matches the required interface specifications for the target application.

Antennas RF Selection Notes

Select this model when cm-level accuracy is required across multiple GNSS constellations. The embedded form factor suits space-constrained designs. Verify that the 100mm RG-174 cable length and SMA(M) connector align with system integration requirements before finalizing the selection.

Antennas RF Part Context

This part belongs to the Taoglas EAHP.60 series of embedded active antennas. The series is engineered for robust performance in challenging environments. The EAHP.60.01.0100D represents a specific configuration within this family, distinguished by its integrated LNA and standard cable assembly.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for direct equivalents or updated series replacements.
