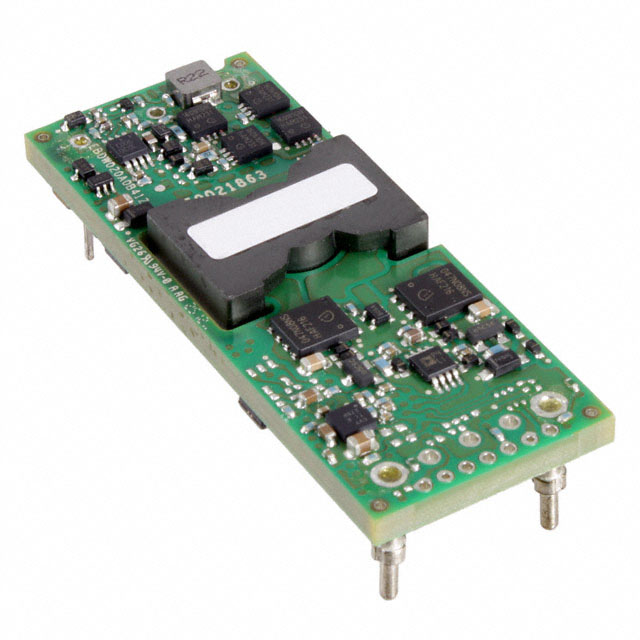

EBVW020A0B41-HZ

EBVW020A0B41-HZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 12V 240W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for EBVW020A0B41-HZ

• Description：DC DC CONVERTER 12V 240W
• Series：Barracuda™ EBVW020A0B (240W)
• Mfr：OmniOn Power™
• Package：Bulk
• Type：Intermediate Bus Converter
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：20A
• Power (Watts)：240 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：95.20%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module, 1/8 Brick
• Size / Dimension：2.30" L x 0.90" W x 0.44" H (58.4mm x 22.9mm x 11.1mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for EBVW020A0B41-HZ
