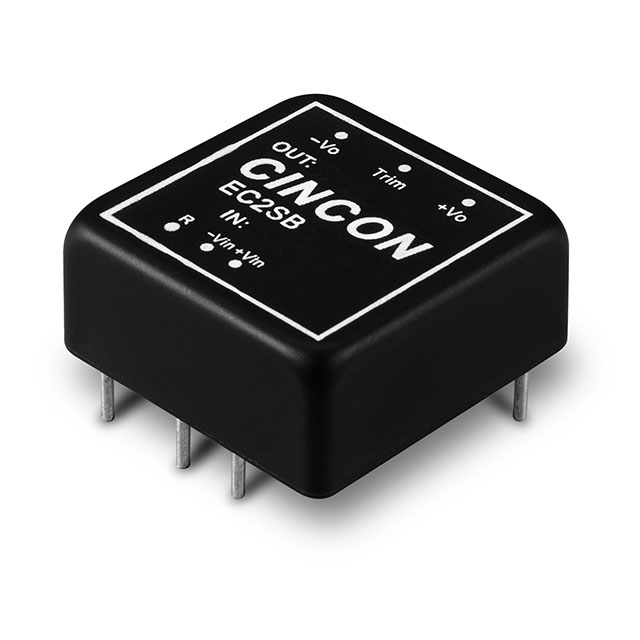

EC2SBW-24S15

EC2SBW-24S15 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cincon Electronics Co. LTD. Its product description is DC DC CONVERTER 15V 10W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for EC2SBW-24S15

• Description：DC DC CONVERTER 15V 10W
• Series：EC2SBW (10W)
• Mfr：Cincon Electronics Co. LTD
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：666mA
• Power (Watts)：10 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：86%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CE
• Standard Number：60950-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for EC2SBW-24S15
