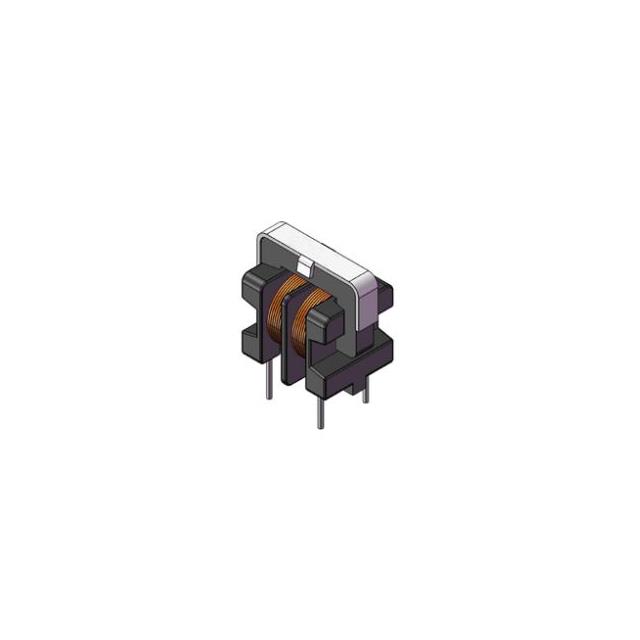

ECMT1V1717S-330-R

$1.83

Description：CMC 33MH 500MA 2LN TH
Series：ECMT1V17
Mfr：Eaton - Electronics Division
Package：Tray

SKU:29a95042ab80 Category: Common Mode Chokes Brand: Eaton - Electronics Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ECMT1V1717S-330-R is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Eaton - Electronics Division. Its product description is CMC 33MH 500MA 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for ECMT1V1717S-330-R

Description：CMC 33MH 500MA 2LN TH
Series：ECMT1V17
Mfr：Eaton - Electronics Division
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：500mA
DC Resistance (DCR) (Max)：2.7Ohm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.669" L x 0.472" W (17.00mm x 12.00mm)
Height (Max)：0.669" (17.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：33 mH @ 1 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for ECMT1V1717S-330-R

ECMT1V1717S-330-R

Common Mode Chokes Overview

The ECMT1V1717S-330-R is a through-hole common mode choke from the Eaton ECMT-R series. It features an inductance of 33 mH at 1 kHz and supports a maximum DC current of 500 mA. The component has a maximum DC resistance of 2.7 Ohms and a self-resonant frequency of 240 kHz. Rated for 250 VAC, it operates within a temperature range of -40°C to +125°C. The device is unshielded and utilizes standard PCB mounting.

Common Mode Chokes Feature Summary

Provides common mode noise suppression for two-line circuits
Supports high impedance filtering with specified inductance values
Designed for through-hole printed circuit board installation

Common Mode Chokes Applications

Industrial IoT equipment signal conditioning
Power supply input filtering
Data line noise reduction in electronic assemblies

Common Mode Chokes Procurement Notes

Verify the specific suffix against official Eaton documentation to confirm exact electrical tolerances and packaging configurations. Ensure the selected variant matches the required inductance and current ratings for the target application circuit. Cross-reference datasheet parameters with system design constraints before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when a 33 mH common mode choke is required for through-hole assembly. Verify that the 500 mA current rating meets the circuit's operational demands. Confirm compatibility with the 250 VAC voltage rating and ensure the physical dimensions fit the designated PCB footprint area.

Common Mode Chokes Part Context

This part belongs to the Eaton ECMT-R series of common mode chokes. The series offers various inductance options ranging from 1 mH to 85 mH. These components are designed for general-purpose noise suppression in industrial and consumer electronics applications requiring reliable EMI filtering.
