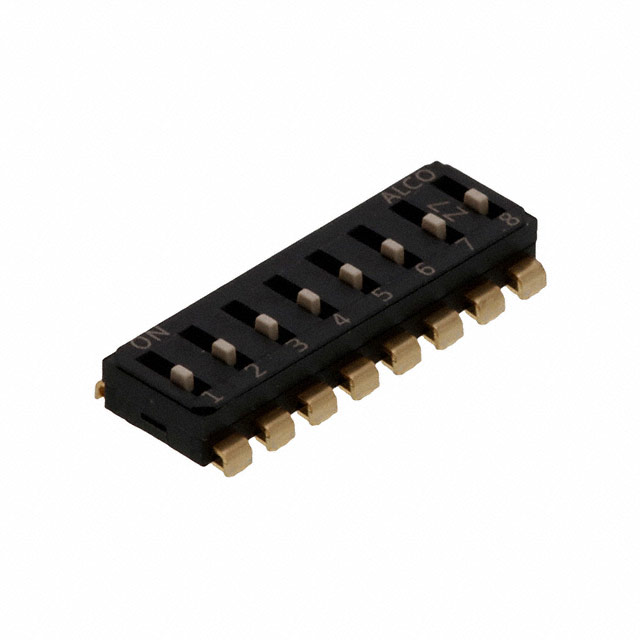

Dip Switches EDS08SNNNTR04Q product image

EDS08SNNNTR04Q

$2.78

Description：SWITCH SLIDE DIP SPST 0.025A 24V
Series：EDS
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:ae20c7500f42 Category: DIP Switches Brand: TE Connectivity ALCOSWITCH Switches

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

EDS08SNNNTR04Q is listed in the Dip Switches range at ChipApex. The manufacturer field lists TE Connectivity ALCOSWITCH Switches. Its product description is SWITCH SLIDE DIP SPST 0.025A 24V. Review the specifications below when checking this part for your BOM.

Dip Switches specifications for EDS08SNNNTR04Q

Description：SWITCH SLIDE DIP SPST 0.025A 24V
Series：EDS
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Tape & Reel (TR),Cut Tape (CT)
Circuit：SPST
Number of Positions：8
Current Rating (Amps)：25mA
Voltage Rating：24VDC
Actuator Type：Slide (Standard)
Actuator Level：Raised
Contact Material：Copper Alloy
Contact Finish：Gold
Height Above Board：0.152" (3.85mm)
Mounting Type：Surface Mount
Termination Style：J Lead
Pitch：0.100" (2.54mm), Full
Washable：No
Features：-
Operating Temperature：-20°C ~ 85°C

Dip Switches datasheet and documents for EDS08SNNNTR04Q

EDS08SNNNTR04Q

Explore related parts through Switches, all product categories, ChipApex homepage.

Online and offline orders are supported. If the item is available for online purchase, you can place it in the cart; for wholesale pricing, please contact our product manager for a quote.

Payment Method

Payment methods: T/T, WeChat Pay, credit cards, Google Pay, Apple Pay . Buyer covers shipping, fees, duties, and taxes; contact our product manager if you need a contract/procurement process.

Delivery time

In-stock items usually ship within 24 hours. Otherwise, shipment is arranged 1 to 2 days after the items arrive at our warehouse. Timing depends on destination and shipping method.

Freight calculation

Freight cost depends on destination, package size, and weight . We offer shipping options via DHL, FedEx, UPS, and TNT , and can ship using your freight account upon request.

Mode of Transportation

We ship via DHL, FedEx, UPS, and TNT. If you prefer a specific logistics provider, we can ship using your designated carrier.

Return and Refund

Returns are accepted within 60 days of invoice with RMA approval. Items must be resalable; original invoice and test report are required. No returns for customer errors.

EDS08SNNNTR04Q

$2.78
