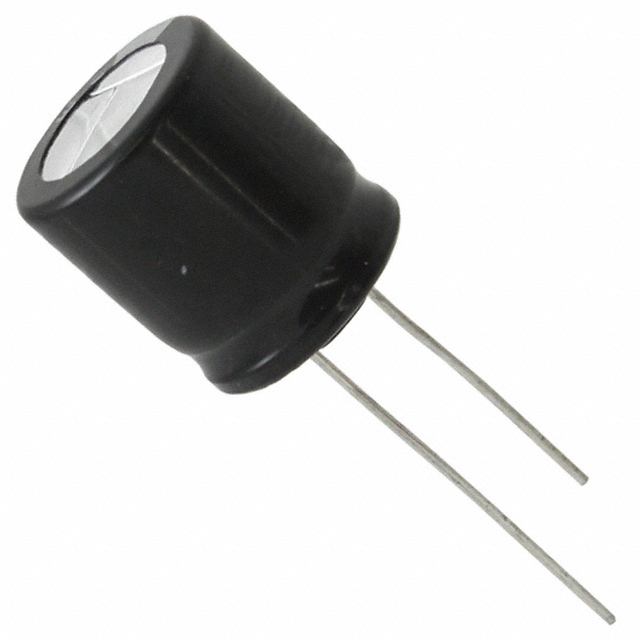

EEU-EB2E101S

EEU-EB2E101S is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 100UF 20% 250V RADIAL. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EEU-EB2E101S

• Description：CAP ALUM 100UF 20% 250V RADIAL
• Series：EB-A
• Mfr：Panasonic Electronic Components
• Package：Bulk
• Capacitance：100 µF
• Tolerance：±20%
• Voltage - Rated：250 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：5000 Hrs @ 105°C
• Operating Temperature：-25°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：660 mA @ 120 Hz
• Ripple Current @ High Frequency：1.2 A @ 100 kHz
• Lead Spacing：0.295" (7.50mm)
• Size / Dimension：0.709" Dia (18.00mm)
• Height - Seated (Max)：1.063" (27.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can

Aluminum Electrolytic Capacitors datasheet and documents for EEU-EB2E101S
