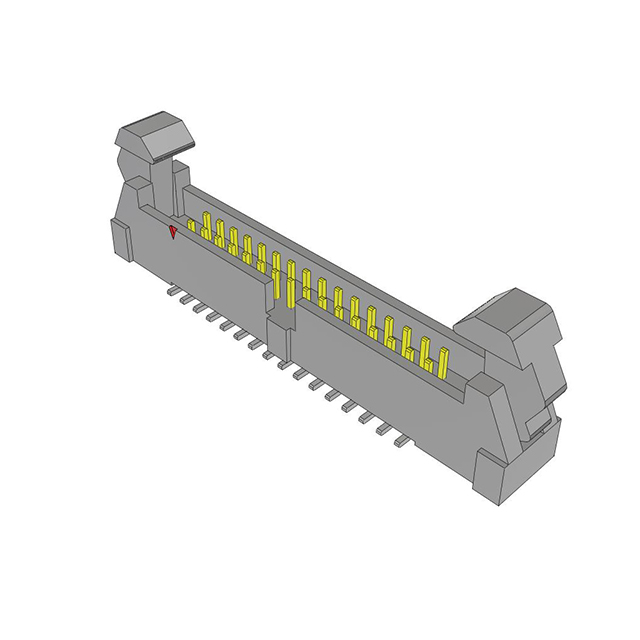

EHT-116-01-F-D-SM-SR

EHT-116-01-F-D-SM-SR is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is 2.00 MM SHROUDED IDC EJECTOR HEA. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for EHT-116-01-F-D-SM-SR

• Description：2.00 MM SHROUDED IDC EJECTOR HEA
• Series：EHT
• Mfr：Samtec Inc.
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：32
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Latch Lock/Eject Hooks
• Contact Length - Mating：0.120" (3.05mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.370" (9.40mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：3.00µin (0.076µm)
• Contact Finish - Post：Tin
• Contact Material：Phosphor Bronze
• Insulation Material：Liquid Crystal Polymer (LCP)
• Features：Keying Slot, Strain Relief
• Operating Temperature：-55°C ~ 125°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：3A
• Voltage Rating：-

Headers, Male Pins datasheet and documents for EHT-116-01-F-D-SM-SR
