EHT-125-01-F-D-SM-K

$11.33

Description：CONN HEADER SMD 50POS 2MM
Series：EHT
Mfr：Samtec Inc.
Package：Tube

SKU:cea5c64e3a6b Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

EHT-125-01-F-D-SM-K is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD 50POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for EHT-125-01-F-D-SM-K

Description：CONN HEADER SMD 50POS 2MM
Series：EHT
Mfr：Samtec Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：50
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Latch Lock/Eject Hooks
Contact Length - Mating：0.120" (3.05mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.370" (9.40mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：3.00µin (0.076µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Keying Slot, Pick and Place
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for EHT-125-01-F-D-SM-K

EHT-125-01-F-D-SM-K

Headers, Male Pins Overview

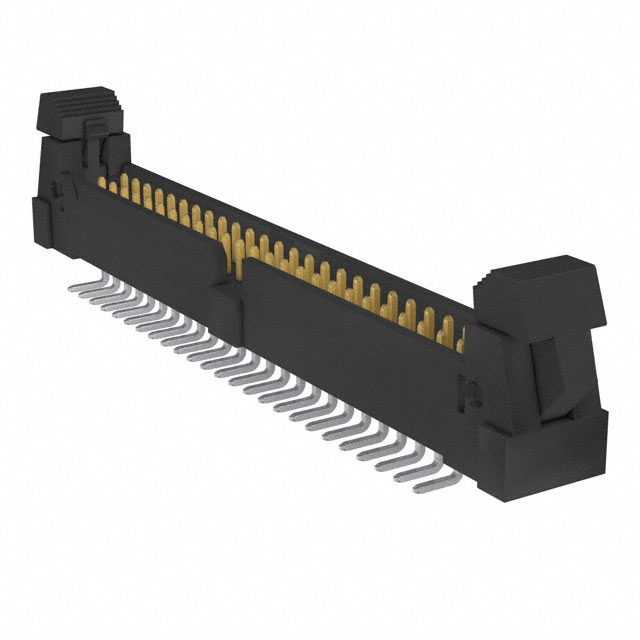

The EHT-125-01-F-D-SM-K is a 2.00 mm shrouded IDC ejector header manufactured by Samtec Inc. It features a male connector type with 50 contacts arranged in two rows. The component utilizes phosphor bronze terminals with gold flash over nickel plating and a liquid crystal polymer insulator. Designed for surface mount applications, it has a contact pitch of 0.079 inch and operates within a temperature range of -55 °C to +125 °C.

Headers, Male Pins Feature Summary

Shrouded design with an integrated ejector mechanism for secure cable retention
Surface mount termination style optimized for automated pick-and-place assembly
Gold flash over nickel terminal plating ensures reliable electrical conductivity

Headers, Male Pins Applications

High-density board-to-cable interconnections
Automated surface mount manufacturing processes
Electronic systems requiring robust IDC latching mechanisms

Headers, Male Pins Procurement Notes

Verify the specific suffix configuration against official documentation to ensure compatibility with mating TCSD series components. Confirm that the selected variant meets all required environmental compliance standards for the intended deployment environment before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a high-reliability surface mount IDC header is required. Ensure the mating cable assembly matches the 2.00 mm pitch specification. Verify that the PCB layout accommodates the specific surface mount footprint dimensions provided in the manufacturer datasheet.

Headers, Male Pins Part Context

This part belongs to the EHT series of shrouded IDC ejector headers. It is designed to mate specifically with TCSD series IDC receptacle cables. The series offers various pin counts and termination styles to support diverse electronic interconnection requirements across multiple industries.
