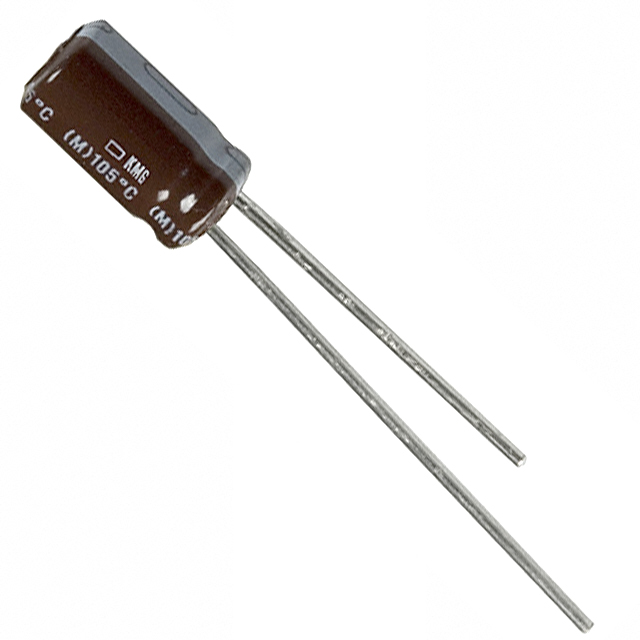

EKMG350ETD101MF11D

EKMG350ETD101MF11D is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Chemi-Con. Its product description is CAP ALUM 100UF 20% 35V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EKMG350ETD101MF11D

• Description：CAP ALUM 100UF 20% 35V RADIAL TH
• Series：KMG
• Mfr：Chemi-Con
• Package：Cut Tape (CT),Tape & Box (TB)
• Capacitance：100 µF
• Tolerance：±20%
• Voltage - Rated：35 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：1000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：150 mA @ 120 Hz
• Ripple Current @ High Frequency：225 mA @ 100 kHz
• Lead Spacing：0.098" (2.50mm)
• Size / Dimension：0.248" Dia (6.30mm)
• Height - Seated (Max)：0.492" (12.50mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can

Aluminum Electrolytic Capacitors datasheet and documents for EKMG350ETD101MF11D
