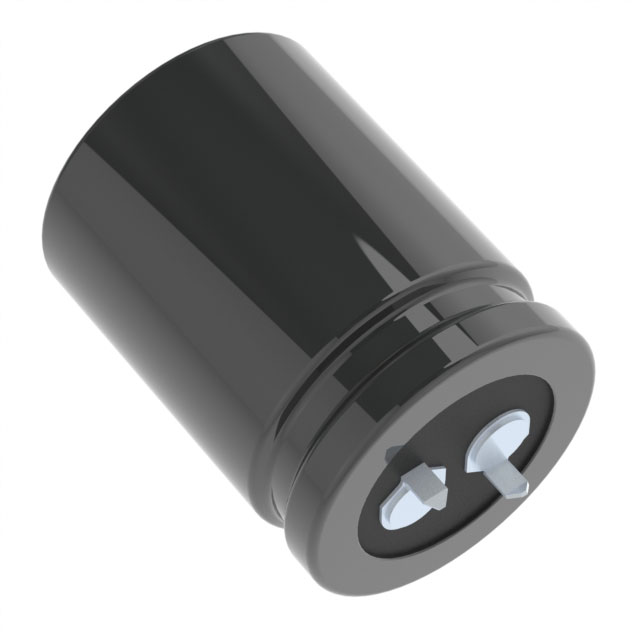

EKMH101VNN222MR40T

EKMH101VNN222MR40T is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Chemi-Con. Its product description is CAP ALUM 2200UF 20% 100V SNAP TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EKMH101VNN222MR40T

• Description：CAP ALUM 2200UF 20% 100V SNAP TH
• Series：KMH
• Mfr：Chemi-Con
• Package：Bulk
• Capacitance：2200 µF
• Tolerance：±20%
• Voltage - Rated：100 V
• ESR (Equivalent Series Resistance)：113mOhm @ 120Hz
• Lifetime @ Temp.：2000 Hrs @ 105°C
• Operating Temperature：-40°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：2.7 A @ 120 Hz
• Ripple Current @ High Frequency：3.24 A @ 100 kHz
• Lead Spacing：0.394" (10.00mm)
• Size / Dimension：1.181" Dia (30.00mm)
• Height - Seated (Max)：1.654" (42.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can - Snap-In

Aluminum Electrolytic Capacitors datasheet and documents for EKMH101VNN222MR40T
