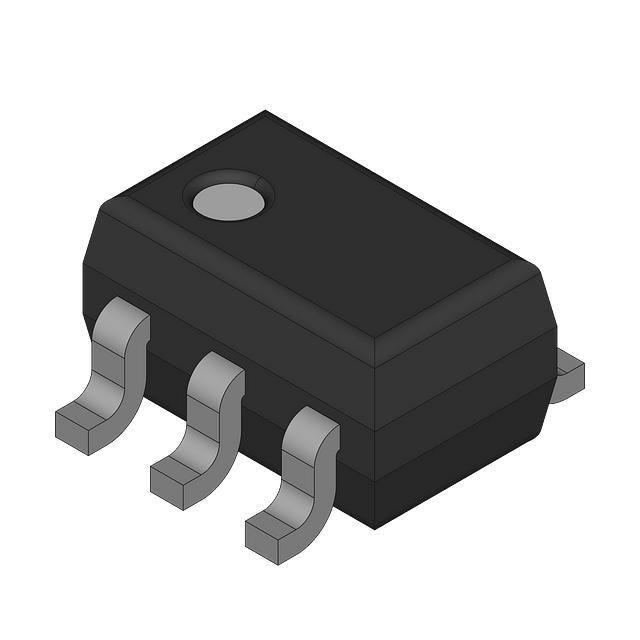

EL5167ICZ-T7A

Instrumentation, Op Amps, Buffer Amps Overview

The EL5167ICZ-T7A is a single-channel high-speed current feedback operational amplifier manufactured by Renesas Electronics. It features a gain-bandwidth product of 2 GHz and a slew rate of 6 kV/us. The device operates on a supply voltage range from 5 V to 12 V, with a maximum dual supply of 6 V. Key electrical parameters include an input offset voltage of 500 uV, a common-mode rejection ratio of 57 dB, and an output current capability of 160 mA per channel. Input noise density is specified at 1.7 nV/sqrt Hz for voltage and 50 pA for current. The component is housed in a SOT-23 package and supports surface mount installation.

Instrumentation, Op Amps, Buffer Amps Feature Summary

• High-speed current feedback architecture designed for wide bandwidth applications
• Capable of delivering high output drive current for demanding load conditions
• Low input offset voltage ensures precision in signal processing tasks

Instrumentation, Op Amps, Buffer Amps Applications

• Video distribution systems requiring high bandwidth
• RF and IF amplification stages
• High-speed data acquisition circuits

Instrumentation, Op Amps, Buffer Amps Procurement Notes

Verify the manufacturer designation as Renesas or Intersil, as Elantec was acquired. Confirm the specific suffix ICZ-T7A corresponds to the TSSOP-6 package variant rather than the SOT-23 reel version. Check export restrictions and moisture sensitivity levels before procurement. Ensure the source document explicitly lists this exact part number to avoid confusion with similar EL5167 series devices.

Instrumentation, Op Amps, Buffer Amps Selection Notes

Select this component when a current feedback topology is required for superior slew rate performance compared to voltage feedback alternatives. The 2 GHz bandwidth makes it suitable for video and RF applications. Verify that the TSSOP-6 package fits the PCB layout constraints. Consider the 160 mA output current if driving low impedance loads directly.

Instrumentation, Op Amps, Buffer Amps Part Context

This device belongs to the EL5167 series of high-speed operational amplifiers. It shares architectural similarities with other members like the EL5163 but offers significantly higher bandwidth. The series is characterized by its current feedback design, which provides consistent performance across varying gains. Manufacturing history involves transitions from Intersil to Renesas Electronics.

Instrumentation, Op Amps, Buffer Amps Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
