ELF-22V060B

Common Mode Chokes Overview

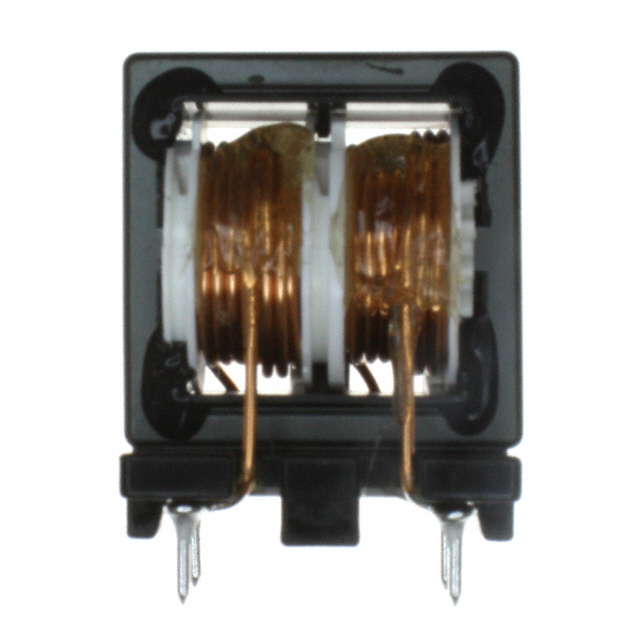

The ELF-22V060B is a through-hole common-mode choke from Panasonic's ELF series. It features two lines with a rated current of 6A and a typical DC resistance of 27mOhm. The component measures 32.00mm in length and 23.00mm in width, designed for compact space savings while providing effective noise suppression.

Common Mode Chokes Feature Summary

• Through-hole design for easy PCB integration
• Compact footprint for space-saving applications
• Two-line configuration for dual-circuit noise filtering

Common Mode Chokes Applications

• General-purpose EMI/RFI noise suppression
• Power line filtering in consumer electronics
• Signal integrity protection in industrial equipment

Common Mode Chokes Procurement Notes

Verify the specific package dimensions and lead configuration against your PCB layout requirements. Confirm that the 6A rated current meets your circuit's operational demands. Check for RoHS compliance status if required by your manufacturing standards. Ensure the through-hole mounting style matches your assembly process capabilities.

Common Mode Chokes Selection Notes

Select this component when a through-hole solution is preferred over surface mount for mechanical stability. Consider the 27mOhm DC resistance impact on power efficiency. Evaluate the physical size constraints to ensure the 32x23mm footprint fits within the enclosure. Verify compatibility with automated insertion equipment if used in high-volume production.

Common Mode Chokes Part Context

This part belongs to Panasonic's ELF series of common-mode chokes, which are engineered for electromagnetic interference suppression. The series offers various current ratings and impedance characteristics to suit different filtering needs across automotive, industrial, and consumer markets.

Common Mode Chokes Replacement Considerations

Consult official Panasonic documentation for direct cross-references. Verify equivalent current ratings and impedance curves before substitution. Ensure mechanical fitment matches the original through-hole specifications.
