EMC-20-T

Power Line Filter Modules Overview

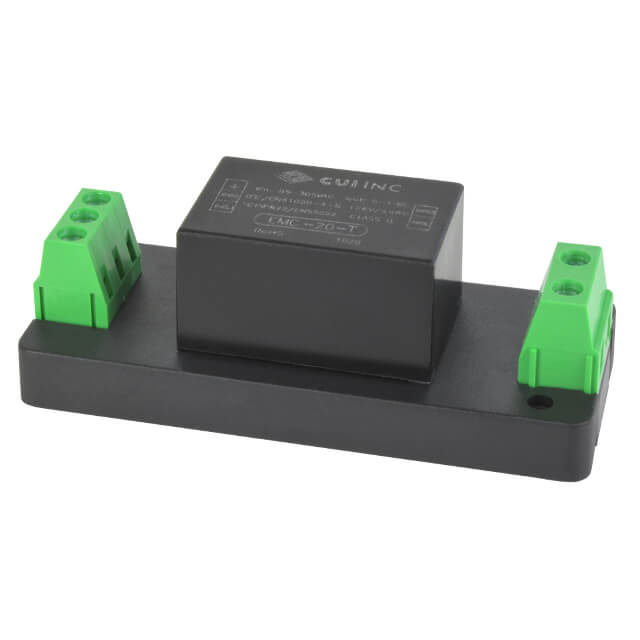

The EMC-20-T is an AC power line filter module manufactured by CUI Inc. It operates within a voltage range of 85 VAC to 305 VAC and supports frequencies from 47 Hz to 63 Hz. The unit provides 20 dB of attenuation and has a current rating of 1.5 A. Designed for chassis mounting, it complies with CISPR22 and EN 55022 standards. The physical dimensions are characterized by a height of 26.8 mm.

Power Line Filter Modules Feature Summary

• Provides 20 dB attenuation for electromagnetic interference suppression
• Complies with CISPR22 and EN 55022 emission standards
• Supports wide input voltage range from 85 VAC to 305 VAC

Power Line Filter Modules Applications

• Industrial equipment requiring EMI filtering
• Medical devices adhering to strict emission standards
• Information technology equipment (ITE) power inputs

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the EMC-20-T to confirm exact mechanical drawings and terminal configurations. Ensure compatibility with the target chassis mounting style and verify that the 1.5 A current rating meets the system requirements. Cross-reference compliance certificates such as CISPR22 and EN 55022 against local regulatory needs before integration.

Power Line Filter Modules Selection Notes

Select this component when a dedicated AC line filter is required for noise reduction in single-phase applications. The 20 dB attenuation level suits general industrial and ITE environments. Consider the 1.5 A current limit and 85-305 VAC operating range to ensure suitability for the specific power supply architecture and load characteristics.

Power Line Filter Modules Part Context

The EMC-20-T belongs to CUI Inc.'s power line filter modules series. These components are designed to suppress conducted electromagnetic interference on AC power lines. The product complements other CUI power solutions by providing essential noise filtration for sensitive electronic systems operating in electrically noisy environments.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes within the EMC series or equivalent filters from other manufacturers offering similar 20 dB attenuation and 1.5 A ratings. Verify mechanical footprint compatibility for chassis mounting and ensure electrical specifications match the original design constraints.
