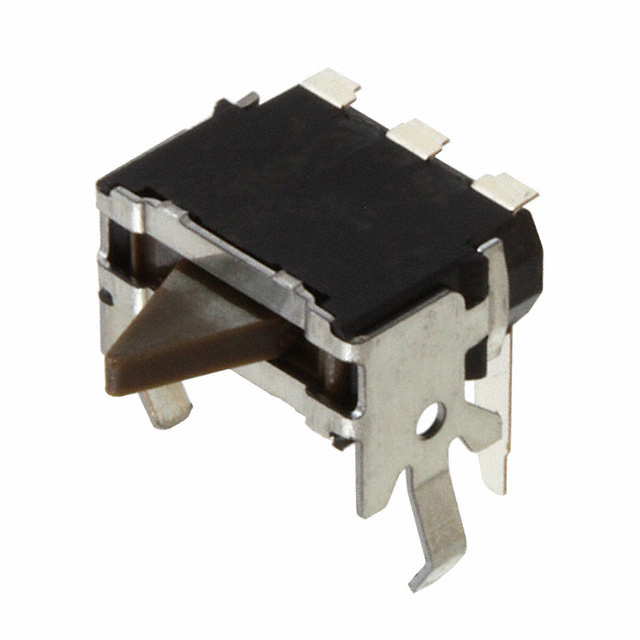

ESE-24CSH1

ESE-24CSH1 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is SWITCH DETECTOR SPDT 0.01A 5V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for ESE-24CSH1

• Description：SWITCH DETECTOR SPDT 0.01A 5V
• Series：ESE24
• Mfr：Panasonic Electronic Components
• Package：Bulk
• Circuit：SPDT
• Switch Function：Mom-Off-Mom
• Current Rating (Amps)：10mA (DC)
• Voltage Rating - AC：-
• Actuator Type：Angled Toggle (Detector)
• Mounting Type：Through Hole, Right Angle
• Termination Style：PC Pin
• Ingress Protection：-
• Features：-
• Operating Force：35gf
• Release Force：-
• Operating Position：0.179" (4.55mm)
• Pretravel：-
• Differential Travel：-
• Overtravel：-
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：5 V

Limit Switches datasheet and documents for ESE-24CSH1
