ESM-06-221

Power Line Filter Modules Overview

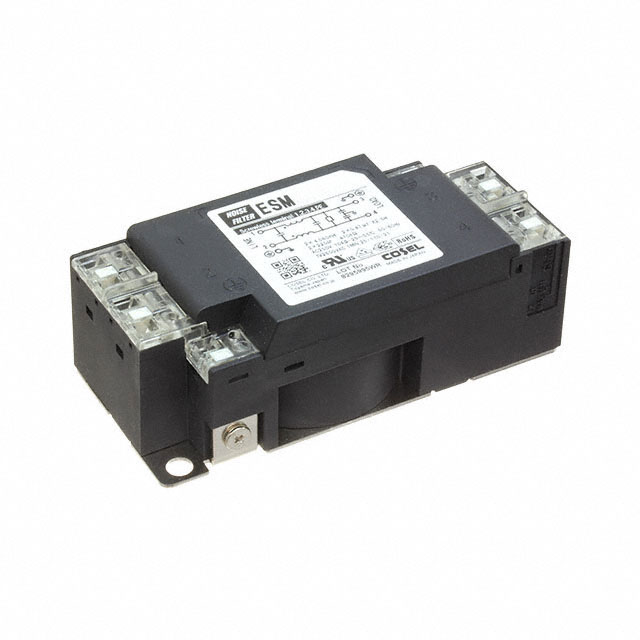

The ESM-06-221 is a single-phase EMC/EMI power line filter manufactured by Cosel USA, Inc. It features a rated voltage of 250 VAC and 250 VDC with a current rating of 6 A. The unit utilizes a terminal block termination style and is designed for chassis mount installation. Key electrical specifications include a capacitance of 220 pF and a leakage current of 25 uA. The filter operates within a frequency range of 10 kHz to 10 MHz.

Power Line Filter Modules Feature Summary

• Single-stage common mode noise filtering for AC and DC power lines
• Terminal block termination for secure wiring connections
• Chassis mount design for stable industrial integration

Power Line Filter Modules Applications

• General purpose power line filtering
• Industrial equipment EMI suppression
• Electrical control panel noise reduction

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision and compliance certifications (such as UL or CSA) required for your target market before procurement. Confirm that the chassis mounting hardware and terminal block compatibility match your system's mechanical and electrical interface requirements to ensure proper integration.

Power Line Filter Modules Selection Notes

Select this component when a 6 A single-phase filter is required for chassis-mounted applications. Ensure the 250 VAC/VDC rating aligns with the system voltage. Compare against the ESM-06-221-D variant if DIN rail mounting is preferred over chassis mounting, noting the difference in installation style.

Power Line Filter Modules Part Context

This part belongs to the ESM series of power line filters from Cosel USA, Inc. The series provides single-phase EMC/EMI solutions for various current ratings. The ESM-06-221 specifically addresses the 6 A requirement category within this product family, offering standard terminal block connectivity.

Power Line Filter Modules Replacement Considerations

The ESM-06-221-D serves as a direct alternative within the same series, differing primarily in its DIN rail mounting style instead of chassis mounting. Verify mechanical fitment before substitution.
