ESM-10-101

Power Line Filter Modules Overview

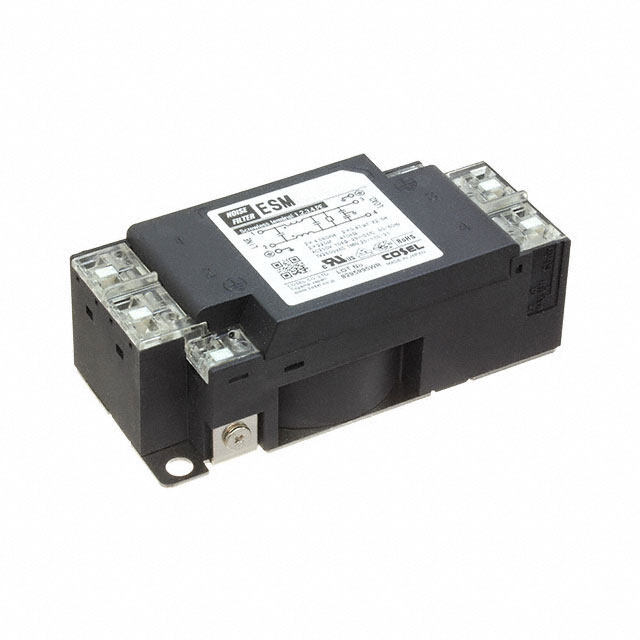

The Cosel ESM-10-101 is a single-phase power line filter designed for chassis mounting. It operates with a voltage rating of 250 VAC and 250 VDC, supporting a current rating of 10 A. The unit features screwless termination and exhibits a leakage current of 12.5 uA. It contains a capacitance of 100 pF and belongs to the ES series. The component weighs 170 g and is packaged in bulk.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for single-phase AC/DC circuits
• Utilizes screwless termination for simplified installation
• Designed for direct chassis mounting applications

Power Line Filter Modules Applications

• Industrial equipment power conditioning
• Medical device power supply filtering
• Office automation hardware EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the ESM-10-101 to confirm exact regulatory certifications such as UL, CSA, or ENEC. Ensure the chassis mounting configuration matches the enclosure design. Confirm that the 12.5 uA leakage current meets safety standards for the intended application environment before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this model when a low-leakage current specification is required for sensitive loads. The 10 A rating suits moderate power applications. Compare against the ESP-10-221 if higher capacitance is needed, noting its higher leakage current. Verify that the chassis mount style fits the available space and mechanical constraints of the system design.

Power Line Filter Modules Part Context

This component is part of the Cosel ES series of power line filters. It shares the 10 A current rating and 250 VAC/VDC voltage ratings with other models in the family, such as the ESP-10-221. The primary distinction lies in the internal capacitance value and resulting leakage current characteristics, which define its specific noise filtering profile.

Power Line Filter Modules Replacement Considerations

The ESM-10-101-D is a related variant within the same product line. Verify compatibility regarding terminal block versus chassis mount styles. Cross-reference specifications with the ESP-10-221 if different leakage current thresholds are acceptable.
