ESP-06-332

Power Line Filter Modules Overview

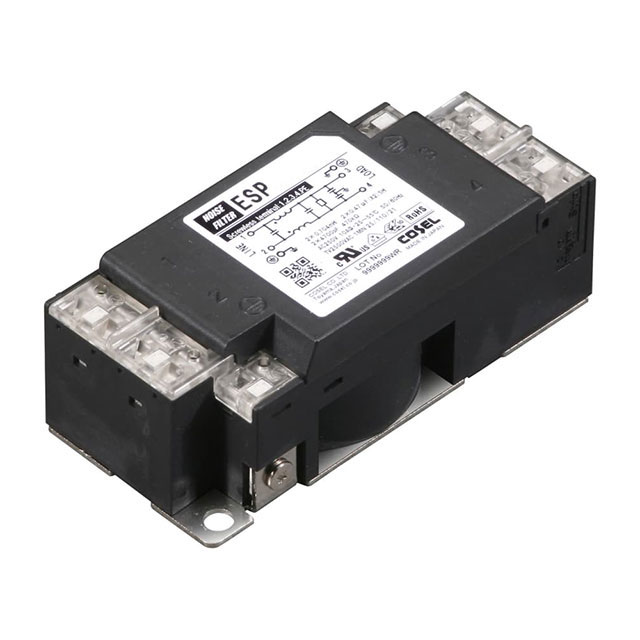

The ESP-06-332 is a single-phase EMC/EMI power line filter manufactured by Cosel USA, Inc. It is rated for 6 A current and supports voltages up to 250 VAC and 250 VDC. The unit features chassis mount installation with screwless termination style. Key electrical specifications include a capacitance of 2.2 nF and a leakage current of 250 uA. It belongs to the ES series and is designed for common mode noise filtering applications.

Power Line Filter Modules Feature Summary

• Provides common mode EMI/EMC filtering for single-phase power lines
• Utilizes a screwless termination style for simplified wiring connections
• Designed for direct chassis mounting to ensure secure physical installation

Power Line Filter Modules Applications

• Industrial equipment requiring electromagnetic interference suppression
• Medical devices needing compliant power line filtering
• General purpose electronic systems utilizing single-phase AC or DC inputs

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official Cosel documentation to confirm exact termination and mounting configurations. Ensure that the required current rating of 6 A and voltage ratings of 250 VAC/VDC align with your system design parameters before procurement. Confirm compliance certifications such as UL and CSA are valid for your target market regulations.

Power Line Filter Modules Selection Notes

Select this component when a single-phase filter with a 6 A capacity is required. The screwless termination offers an alternative to traditional screw terminals for faster assembly. Consider the 250 uA leakage current specification if low leakage is critical for safety isolation in your application design.

Power Line Filter Modules Part Context

This component is part of the ES series from Cosel USA, Inc., which focuses on power line filters. It shares the general form factor and filtering principles with other models in the series but is distinguished by its specific 6 A current rating and 2.2 nF capacitance value tailored for moderate load applications.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers for the ESP-06-332 are not available in the provided source data. Consult Cosel technical support for verified cross-references.
