ESP-16-101

Power Line Filter Modules Overview

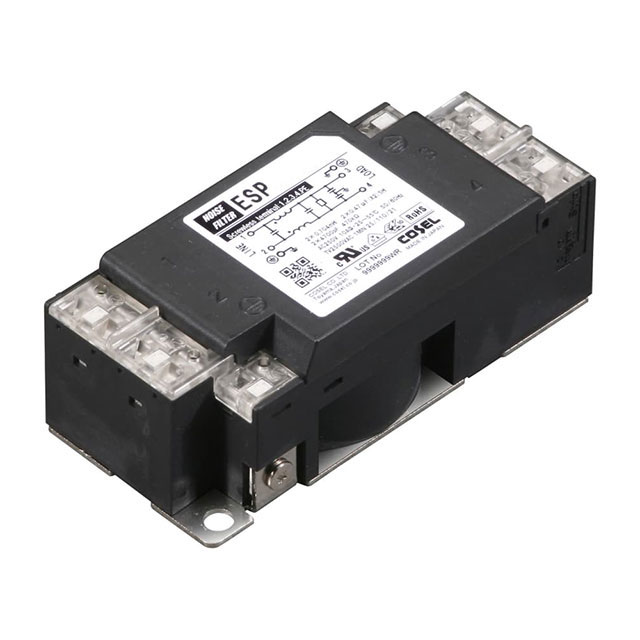

The ESP-16-101 is a single-phase EMI/EMC power line filter manufactured by Cosel USA, Inc. It supports a voltage rating of 250 VAC and 250 VDC with a current capacity of 16 A. Designed for chassis mounting, the unit utilizes screwless terminal blocks for connection. The filter operates within a temperature range of -40°C to 85°C and weighs approximately 170 grams.

Power Line Filter Modules Feature Summary

• Provides common mode noise suppression for single-phase AC and DC power lines
• Features screwless terminal block connections for secure wiring
• Engineered for direct chassis mounting installation

Power Line Filter Modules Applications

• Industrial control systems requiring EMI mitigation
• Medical equipment power input stages
• Test and measurement instrumentation

Power Line Filter Modules Procurement Notes

Verify the specific capacitance value required for your application, as this parameter varies across the ESP-16 series (e.g., ESP-16-101-D vs ESP-16-331-D). Confirm that the chassis mounting style aligns with your enclosure design. Ensure the 16 A current rating meets the load requirements. Check for necessary regional certifications such as UL or VDE before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component when a chassis-mount configuration is preferred over DIN rail options available in the same series. The 16 A rating suits moderate power applications. Verify that the leakage current specifications meet safety standards for the intended end-use environment. Compare against other ESP-16 variants if different filtering characteristics are needed.

Power Line Filter Modules Part Context

This part belongs to the ES series of power line filters from Cosel. The series offers various configurations including chassis mount and DIN rail styles. Different suffixes indicate variations in internal capacitance and mounting hardware. The ESP-16-101 specifically denotes the chassis-mounted variant within this product family.

Power Line Filter Modules Replacement Considerations

Direct substitutes include other ESP-16 models with identical mounting and current ratings but different capacitance values, such as ESP-16-331-D or ESP-16-000. Verify that the replacement matches the required attenuation performance and physical dimensions.
