ESP-16-102

Power Line Filter Modules Overview

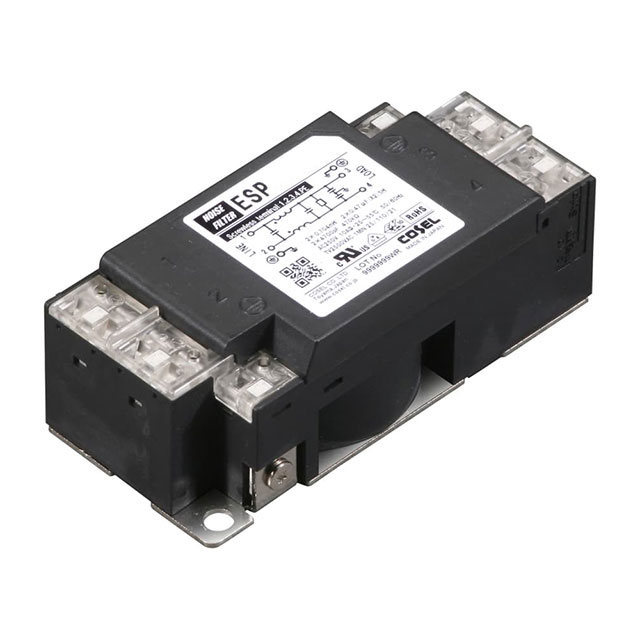

The ESP-16-102 is a single-phase EMI/EMC power line filter module manufactured by Cosel USA, Inc. It supports a voltage rating of 250 VAC and 250 VDC with a current capacity of 16 A. Designed for chassis mounting, it utilizes screwless terminal blocks for connection. The unit operates within a temperature range of -40°C to 85°C and weighs approximately 170 g.

Power Line Filter Modules Feature Summary

• Provides common mode noise suppression for single-phase AC and DC circuits
• Features screwless terminal block connections for rapid installation
• Designed for direct chassis mounting in industrial enclosures

Power Line Filter Modules Applications

• Industrial control panels requiring EMI suppression
• Power supply input filtering for machinery
• General electronic equipment EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific suffix (e.g., -D) required for your application, as variants may differ in certification or leakage current. Confirm chassis mounting compatibility and terminal block torque specifications before integration. Ensure the selected model meets local regulatory standards such as UL or VDE for your region.

Power Line Filter Modules Selection Notes

Select this component when a 16 A single-phase filter is needed for chassis-mounted applications. Compare leakage current requirements against other ES series models if strict safety isolation is critical. Verify that the operating temperature range covers the intended environmental conditions.

Power Line Filter Modules Part Context

This component belongs to the ES series of power line filters from Cosel. The series offers various current ratings and capacitance options to suit different noise profiles. The ESP-16-102 specifically addresses mid-range current needs with standard attenuation characteristics for general industrial use.

Power Line Filter Modules Replacement Considerations

Check for ESP-16-102-D or similar suffixes for certified variants. Consult the official datasheet for exact dimensional and electrical equivalence before substituting.
