ESP-16-471

Power Line Filter Modules Overview

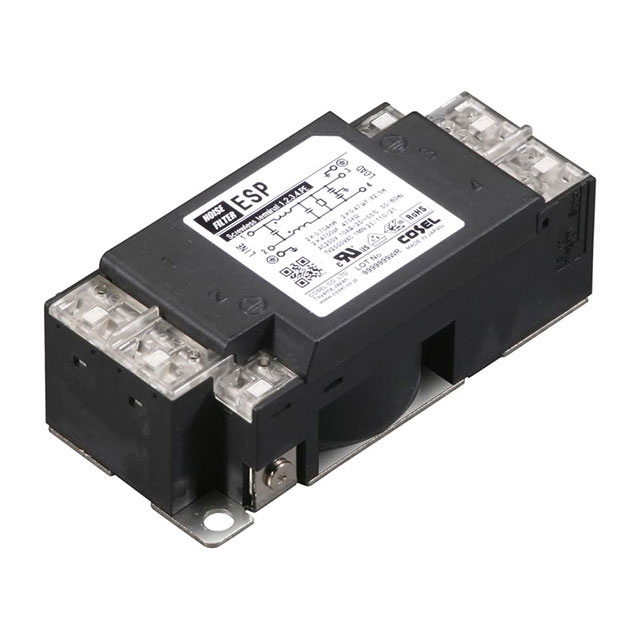

The ESP-16-471 is a single-phase EMI/EMC power line filter manufactured by Cosel USA, Inc. It supports a rated AC voltage of 250V and a rated DC voltage of 250V with a continuous current capacity of 16A. Designed for chassis mounting, the unit utilizes screw termination style for electrical connections. The component operates within a temperature range of -40°C to 85°C and holds cURus and VDE certifications. It belongs to the ESP series and is classified as a common mode noise filter suitable for general industrial applications.

Power Line Filter Modules Feature Summary

• Provides single-phase electromagnetic interference suppression for power lines
• Supports both AC and DC circuit protection up to 250V ratings
• Features robust chassis mounting configuration for secure installation

Power Line Filter Modules Applications

• Industrial machinery power supply filtering
• Medical equipment EMC compliance
• General purpose electronic device noise reduction

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the ESP-16-471 to confirm terminal block specifications and mounting hole dimensions. Ensure the application environment remains within the -40°C to 85°C operating range. Confirm that the 16A current rating aligns with the system's maximum load requirements before integration.

Power Line Filter Modules Selection Notes

Select this model when a 16A single-phase filter is required for chassis-mounted installations. Compare against the EAP-16-472-D if DIN rail mounting is preferred instead of chassis mounting. Verify that the 250VAC/VDC rating meets the specific circuit voltage requirements of the target application.

Power Line Filter Modules Part Context

This component is part of the ESP series from Cosel USA, Inc., which focuses on single-phase power line filters. It shares the 16A current rating and 250V voltage specifications with other models in the lineup but differs in mounting style compared to DIN rail variants like the EAP series.

Power Line Filter Modules Replacement Considerations

The EAP-16-472-D serves as a functional substitute with identical electrical ratings but utilizes DIN rail mounting rather than chassis mounting. Verify mechanical fitment differences before swapping.
