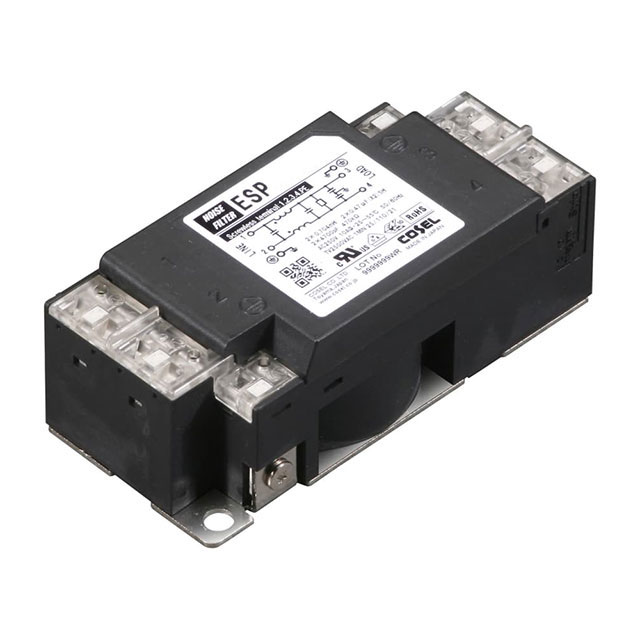

ESP-16-472

Power Line Filter Modules Overview

The ESP-16-472 is a single-phase EMC/EMI line filter manufactured by Cosel USA, Inc. It supports a rated AC voltage of 250 VAC and a DC voltage of 250 VDC with a continuous current rating of 16 A. The unit features a single-stage configuration and utilizes screwless terminal block connections for installation. Designed for DIN rail mounting, it operates within a temperature range of -40°C to 85°C. Key electrical specifications include a capacitance of 330 pF and a leakage current of 37.5 uA. The component holds cURus and VDE certifications and complies with RoHS3 standards.

Power Line Filter Modules Feature Summary

• Provides single-stage EMI/EMC filtering for single-phase power lines
• Features screwless terminal block connections for secure wiring
• Designed for standard DIN rail mounting applications
• Certified for international safety compliance including UL and VDE

Power Line Filter Modules Applications

• Industrial control systems requiring EMI suppression
• Power distribution units needing single-phase noise filtration
• Equipment enclosures utilizing DIN rail mounting infrastructure

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official Cosel documentation to ensure correct terminal type and certification requirements. Confirm that the application environment remains within the specified operating temperature range of -40°C to 85°C. Ensure compatibility with the 250 VAC/VDC rating and 16 A current capacity before integration into the power circuit design.

Power Line Filter Modules Selection Notes

Select this model when single-phase EMI filtering is required for circuits operating up to 16 A at 250 V. The screwless terminal design facilitates rapid assembly compared to screw-type alternatives. Verify that the 330 pF capacitance value meets the system's leakage current constraints, as higher capacitance variants exist within the series for different noise attenuation profiles.

Power Line Filter Modules Part Context

This component belongs to the ESP series of power line filters from Cosel USA, Inc., which are engineered for industrial electromagnetic compatibility. The series offers various configurations differing in stage count, terminal style, and electrical ratings. The ESP-16-472 specifically addresses single-phase applications requiring DIN rail integration and certified safety performance for global deployment.

Power Line Filter Modules Replacement Considerations

The EAP-16-472-D is a related variant within the same manufacturer's portfolio. Differences may exist in terminal block style or specific certification markings. Cross-referencing the official datasheet is necessary to confirm functional equivalence regarding electrical parameters and mechanical fit before substitution.
