Product Detailed Parameters

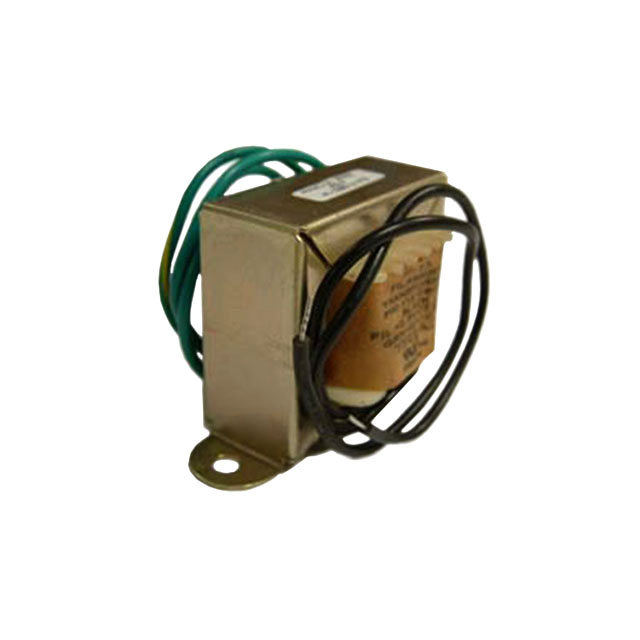

- Description：PWR XFMR LAMINATED 18.9VA CHAS
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：6.3V
- Current - Output (Max)：3A
- Primary Winding(s)：Single
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：18.9VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：84.12mm L x 50.80mm W
- Height - Seated (Max)：49.20mm
- Voltage - Isolation：2500Vrms
- Weight：1.3 lbs (589.7 g)
Download product information
Overview
The Triad Magnetics F-16X is an industrial power transformer designed for chassis mounting with wire leads. It features a single primary winding rated at 115V AC and a single secondary winding providing 6.3V CT output. The unit supports a maximum current of 3.0A, resulting in a power rating of approximately 18.9 VA. Operating at 50/60 Hz, the device measures 1.88 inches in length, 3.25 inches in width, and 2 inches in height. It weighs 476 grams and complies with RoHS standards.
