F1100AA20

Power Line Filter Modules Overview

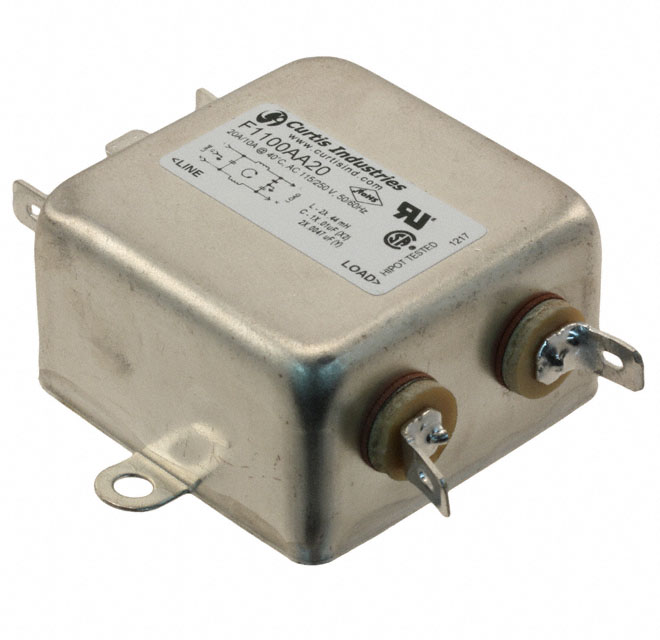

The Curtis Industries F1100AA20 is a single-phase EMC/EMI line filter module designed for chassis mounting. It operates at a rated current of 20 A and a voltage of 250 VAC, supporting 50/60 Hz frequencies. The unit utilizes a single-stage filtering architecture to suppress electromagnetic interference in power lines. Connection is facilitated through quick-connect terminals, ensuring straightforward integration into industrial electrical systems.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC filtering capability
• Chassis mount construction
• Quick connect terminal interface

Power Line Filter Modules Applications

• Industrial power distribution units
• Commercial equipment power supplies
• Electrical control panels

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the F1100AA20 to confirm mechanical dimensions and terminal specifications before integration. Ensure that the installation environment meets the thermal requirements for a 20 A rated device. Cross-reference the quick-connect terminal type with existing wiring harnesses to guarantee physical compatibility and secure electrical contact during operation.

Power Line Filter Modules Selection Notes

Select this component when a compact, single-phase solution is required for suppressing conducted emissions in 250 VAC systems. The 20 A rating suits moderate load applications where space constraints favor chassis mounting over panel cutouts. Evaluate the need for quick-connect termination against available wiring infrastructure to determine suitability for the specific assembly process.

Power Line Filter Modules Part Context

This part belongs to Curtis Industries' power line filter module series, which provides electromagnetic interference suppression for AC power inputs. The F1100AA20 variant specifically addresses single-phase applications requiring robust chassis-mounted protection. Curtis Industries manufactures these components to meet industrial standards for noise reduction in sensitive electronic environments.

Power Line Filter Modules Replacement Considerations

Consult official substitution guides or manufacturer cross-reference lists to identify compatible alternatives. Verify that any substitute maintains identical voltage, current, and mounting specifications to ensure system integrity.
